TLP350 - Toshiba

Description: IC PHOTOCOUPLER IRED 8-DIP

Download TLP350 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

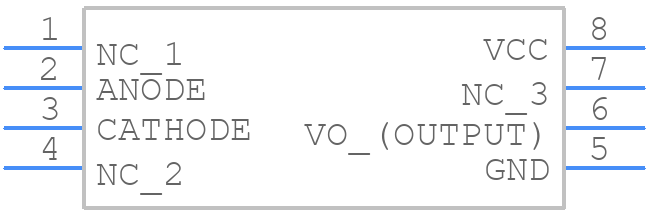

TLP350 - Toshiba - PCB symbol
click to zoom
PCB Footprints
TLP350 - Toshiba PCB footprint - Dual-In-Line Packages - Dual-In-Line Packages - 11-10c4
click to zoom
3D Models
TLP350 - Toshiba - 3D model - Dual-In-Line Packages - 11-10c4
click to zoom

TLP350 Details

  • Manufacturer Part Number:

    TLP350

  • Pbfree Code:

    No

  • Part Life Cycle Code:

    Not Recommended

  • Package Description:

    DIP-8

  • HTS Code:

    8541.40.80.00

  • Manufacturer:

    Toshiba America Electronic Components

  • YTEOL:

    3

  • Additional Feature:

    UL RECOGNIZED

  • Configuration:

    SINGLE

  • Forward Current-Max:

    0.02 A

  • Isolation Voltage-Max:

    3750 V

  • JESD-609 Code:

    e0

  • Mounting Feature:

    THROUGH HOLE MOUNT

  • Number of Elements:

    1

  • Number of Functions:

    1

  • Operating Temperature-Max:

    100 °C

  • Operating Temperature-Min:

    -40 °C

  • Optoelectronic Device Type:

    LOGIC IC OUTPUT OPTOCOUPLER

  • Response Time-Max:

    5e-7 s

  • Response Time-Nom:

    1.5e-7 ns

  • Supply Voltage-Min:

    15 V

  • Supply Voltage-Nom:

    30 V

  • Surface Mount:

    NO

  • Terminal Finish:

    Tin/Lead (Sn/Pb)

TLP350 Frequently Asked Questions (FAQs)

  • The maximum allowable voltage across the input pins is ±1.5 kV, but it's recommended to keep it below ±1 kV for reliable operation.
  • The TLP350 is rated for operation from -40°C to 100°C. Ensure good thermal design and heat dissipation to keep the junction temperature below 100°C. Use a heat sink if necessary.
  • The recommended input current is 5 mA to 10 mA. Exceeding this may reduce the optocoupler's lifespan or cause it to malfunction.
  • The TLP350 has a bandwidth of 10 kHz, making it suitable for low-to-medium frequency applications. For high-frequency applications, consider using a faster optocoupler like the TLP236 or TLP237.
  • The TLP350 has built-in ESD protection, but it's still recommended to follow proper ESD handling procedures when handling the device. Use an ESD wrist strap, mat, or workstation to prevent damage.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

TLP350 Overview

Use the download button to access the TLP350 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TLP35, or try a keyword search, such as Optocoupler
