TLP350H - Toshiba

Description: TOSHIBA - TLP350H - Optocoupler, Gate Drive Output, 1 Channel, DIP, 8 Pins, 3.75 kV

Download TLP350H Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

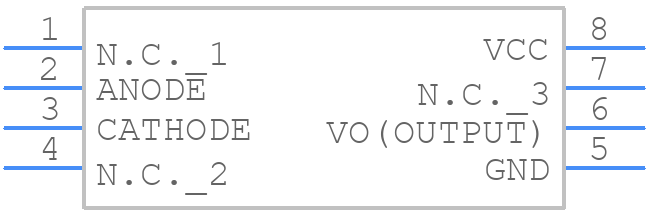

TLP350H - Toshiba - PCB symbol
click to zoom
PCB Footprints
TLP350H - Toshiba PCB footprint - Dual-In-Line Packages - Dual-In-Line Packages - 11-10C4S_1
click to zoom
3D Models
TLP350H - Toshiba - 3D model - Dual-In-Line Packages - 11-10C4S_1
click to zoom

TLP350H Details

  • Manufacturer Part Number:

    TLP350H

  • Part Life Cycle Code:

    Active

  • Package Description:

    11-10C4S, DIP-8

  • HTS Code:

    8541.40.80.00

  • Manufacturer:

    Toshiba America Electronic Components

  • YTEOL:

    5

  • Additional Feature:

    UL RECOGNIZED

  • Configuration:

    SINGLE

  • Forward Current-Max:

    0.02 A

  • Isolation Voltage-Max:

    3750 V

  • Mounting Feature:

    THROUGH HOLE MOUNT

  • Number of Elements:

    1

  • Number of Functions:

    1

  • On-State Current-Max:

    2.5 A

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Optoelectronic Device Type:

    LOGIC IC OUTPUT OPTOCOUPLER

  • Response Time-Nom:

    1.5e-8 ns

  • Supply Voltage-Min:

    15 V

  • Surface Mount:

    NO

TLP350H Frequently Asked Questions (FAQs)

  • A good PCB layout for the TLP350H involves keeping the input and output traces short and separate, using a ground plane, and placing the device close to the power supply. Additionally, it's recommended to use a 0.1uF decoupling capacitor between the VIN and GND pins.
  • To ensure proper biasing, connect the EN pin to a logic high (VIN) to enable the device. The VIN pin should be connected to a stable voltage source, and the GND pin should be connected to a solid ground plane. Additionally, ensure that the input voltage is within the recommended operating range.
  • The TLP350H can handle a maximum current of 1.5A, but it's recommended to keep the current below 1A for optimal performance and to prevent overheating.
  • To protect the TLP350H from overvoltage and undervoltage conditions, use a voltage regulator or a voltage supervisor to ensure the input voltage is within the recommended operating range. Additionally, consider adding overvoltage protection (OVP) and undervoltage protection (UVP) circuits to prevent damage to the device.
  • The recommended operating temperature range for the TLP350H is -40°C to 125°C. However, it's recommended to keep the device within a temperature range of 0°C to 85°C for optimal performance and reliability.
