TLP350HF(F) - Toshiba

Description: Toshiba, TLP350HF(F) Photo IC Output Optocoupler, Through Hole, 8-Pin DIP

Download TLP350HF(F) Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

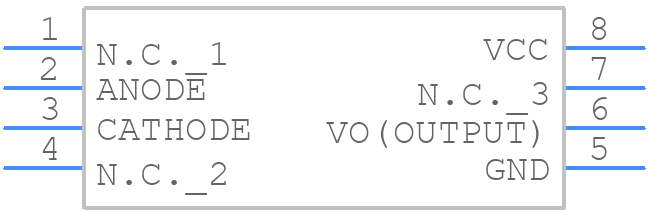

TLP350HF(F) - Toshiba - PCB symbol
click to zoom
PCB Footprints
TLP350HF(F) - Toshiba PCB footprint - Dual-In-Line Packages - Dual-In-Line Packages - 11-10C402S
click to zoom
3D Models
TLP350HF(F) - Toshiba - 3D model - Dual-In-Line Packages - 11-10C402S
click to zoom

TLP350HF(F) Details

  • Manufacturer Part Number:

    TLP350HF(F)

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    ROHS COMPLIANT, 11-10C4S, DIP-8

  • HTS Code:

    8541.40.80.00

  • Manufacturer:

    Toshiba America Electronic Components

  • YTEOL:

    7

  • Additional Feature:

    UL RECOGNIZED

  • Configuration:

    SINGLE

  • Forward Current-Max:

    0.02 A

  • Isolation Voltage-Max:

    3750 V

  • Mounting Feature:

    THROUGH HOLE MOUNT

  • Number of Elements:

    1

  • Number of Functions:

    1

  • On-State Current-Max:

    2.5 A

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Optoelectronic Device Type:

    LOGIC IC OUTPUT OPTOCOUPLER

  • Response Time-Nom:

    1.5e-8 ns

  • Supply Voltage-Min:

    15 V

  • Surface Mount:

    NO

TLP350HF(F) Frequently Asked Questions (FAQs)

  • Toshiba recommends a PCB layout with a ground plane underneath the IC, and keeping the input and output traces as short as possible to minimize noise and signal degradation.
  • The TLP350HF(F) requires a bias voltage of 3.3V to 5V on the VCC pin, and a bias current of 1mA to 10mA on the VREF pin. Ensure that the bias voltage and current are within the recommended range for optimal performance.
  • The maximum allowable voltage on the input pins of the TLP350HF(F) is 6V, exceeding which may cause damage to the device.
  • Toshiba recommends using ESD protection devices such as TVS diodes or ESD arrays on the input and output lines to protect the TLP350HF(F) from electrostatic discharge.
  • The TLP350HF(F) operates over a temperature range of -40°C to 125°C, making it suitable for use in a wide range of applications.
