TLP351(TP1,F) - Toshiba

Description: Logic Output Optocouplers IC cplr IGBT drive

Download TLP351(TP1,F) Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

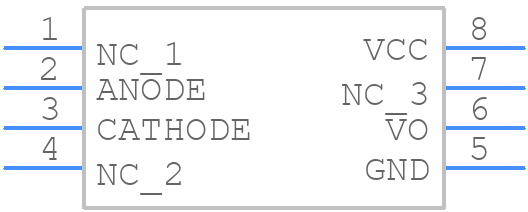

TLP351(TP1,F) - Toshiba - PCB symbol
click to zoom
PCB Footprints
TLP351(TP1,F) - Toshiba PCB footprint - Dual-In-Line Packages - Dual-In-Line Packages - TLP521-2
click to zoom
3D Models
TLP351(TP1,F) - Toshiba - 3D model - Dual-In-Line Packages - TLP521-2
click to zoom

TLP351(TP1,F) Details

  • Manufacturer Part Number:

    TLP351(TP1,F)

  • Part Life Cycle Code:

    Obsolete

  • HTS Code:

    8541.40.80.00

  • Manufacturer:

    Toshiba America Electronic Components

  • YTEOL:

    0

  • Additional Feature:

    UL APPROVED

  • Configuration:

    SINGLE

  • Forward Current-Max:

    0.02 A

  • Isolation Voltage-Max:

    3750 V

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Elements:

    1

  • Number of Functions:

    1

  • Operating Temperature-Max:

    100 °C

  • Operating Temperature-Min:

    -40 °C

  • Optoelectronic Device Type:

    LOGIC IC OUTPUT OPTOCOUPLER

  • Response Time-Nom:

    5e-8 ns

  • Supply Voltage-Min:

    10 V

  • Surface Mount:

    YES

TLP351(TP1,F) Frequently Asked Questions (FAQs)

  • The recommended operating voltage range for the TLP351 is 4.5V to 5.5V.
  • To ensure proper biasing, connect the VCC pin to a stable 5V power supply, and the GND pin to a solid ground. Also, make sure to decouple the power supply with a 0.1uF capacitor.
  • The TLP351 can sink or source up to 50mA of current.
  • To protect the TLP351 from ESD, handle the device by the body or use an anti-static wrist strap. Also, ensure that the PCB is designed with ESD protection in mind, such as using ESD protection diodes.
  • The TLP351 can operate safely in the temperature range of -40°C to 85°C.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

TLP351(TP1,F) Overview

Use the download button to access the TLP351(TP1,F) schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TLP35, or try a keyword search, such as Optocoupler
