TLP351H(D4-TP1,F) - Toshiba

Description: Logic Output Opto-couplers Photocoupler 35V I-Temp

Download TLP351H(D4-TP1,F) Model

Schematic
symbols

PCB
footprints

3D
models

Alert me if there are changes to this TLP351H(D4-TP1,F) model

Email notifications will be applied after download.

Send part feedback

Symbol

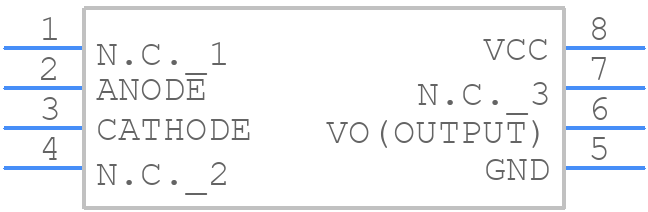

TLP351H(D4-TP1,F) - Toshiba - PCB symbol

PCB Footprints

TLP351H(D4-TP1,F) - Toshiba PCB footprint - Dual-In-Line Packages - Dual-In-Line Packages - 11-10C402S

3D Models

TLP351H(D4-TP1,F) - Toshiba - 3D model - Dual-In-Line Packages - 11-10C402S

Datasheet Download Datasheet
Stock & Prices Price & Stock for TLP351H(D4-TP1,F)
Part Number TLP351H(D4-TP1,F)
Manufacturer Toshiba
Pin Count 8
Part Category Integrated Circuit
Package Category Dual-In-Line Packages
Footprint Name Dual-In-Line Packages - 11-10C402S
Released Date Apr 15, 2022
Last Modified Date Mar 7, 2023 4:10 PM UTC
Pinout / Pin List Click Here (Member Only)

TLP351H(D4-TP1,F) Details

Manufacturer Part Number:
TLP351H(D4-TP1,F)
Rohs Code:
Yes
Part Life Cycle Code:
Active
HTS Code:
8541.40.80.00
Factory Lead Time:
26 Weeks
Manufacturer:
Toshiba America Electronic Components
YTEOL:
7
Additional Feature:
OPEN COLLECTOR, UL APPROVED, VDE APPROVED
Configuration:
SINGLE
Forward Current-Max:
0.02 A
Isolation Voltage-Max:
3750 V
Mounting Feature:
SURFACE MOUNT
Number of Elements:
1
Number of Functions:
1
On-State Current-Max:
0.6 A
Operating Temperature-Max:
125 °C
Operating Temperature-Min:
-40 °C
Optoelectronic Device Type:
LOGIC IC OUTPUT OPTOCOUPLER
Packing Method:
TAPE
Response Time-Nom:
5e-8 ns
Supply Voltage-Min:
10 V
Surface Mount:
YES
