TLP351H(F) - Toshiba

Description: Toshiba TLP351H(F) Optocoupler

Download TLP351H(F) Model

Schematic
symbols

PCB
footprints

3D
models

Alert me if there are changes to this TLP351H(F) model

Email notifications will be applied after download.

Send part feedback

Symbol

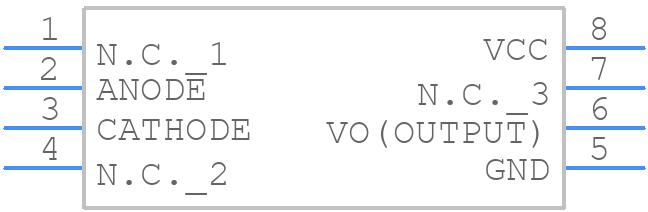

TLP351H(F) - Toshiba - PCB symbol

PCB Footprints

TLP351H(F) - Toshiba PCB footprint - Dual-In-Line Packages - Dual-In-Line Packages - 11-10C4S (8PDIP)

3D Models

TLP351H(F) - Toshiba - 3D model - Dual-In-Line Packages - 11-10C4S (8PDIP)

Datasheet Download Datasheet
Stock & Prices Price & Stock for TLP351H(F)
Part Number TLP351H(F)
Manufacturer Toshiba
Pin Count 8
Part Category Integrated Circuit
Package Category Dual-In-Line Packages
Footprint Name Dual-In-Line Packages - 11-10C4S (8PDIP)
Released Date Apr 13, 2022
Last Modified Date Mar 7, 2023 4:10 PM UTC
Pinout / Pin List Click Here (Member Only)

TLP351H(F) Details

Manufacturer Part Number:
TLP351H(F)
Rohs Code:
Yes
Part Life Cycle Code:
Active
Package Description:
ROHS COMPLIANT, 11-10C4S, DIP-8
Reach Compliance Code:
Unknown
HTS Code:
8541.40.80.00
Factory Lead Time:
26 Weeks
Manufacturer:
Toshiba America Electronic Components
YTEOL:
7
Additional Feature:
UL RECOGNIZED
Configuration:
SINGLE
Forward Current-Max:
0.02 A
Isolation Voltage-Max:
3750 V
Mounting Feature:
THROUGH HOLE MOUNT
Number of Elements:
1
Number of Functions:
1
Operating Temperature-Max:
125 °C
Operating Temperature-Min:
-40 °C
Optoelectronic Device Type:
LOGIC IC OUTPUT OPTOCOUPLER
Response Time-Nom:
5e-8 ns
Supply Voltage-Min:
10 V
Surface Mount:
NO

TLP351H(F) Frequently Asked Questions (FAQs)

The recommended operating voltage range for the TLP351H(F) is 4.5V to 5.5V.
To ensure proper biasing, connect the VCC pin to a stable 5V power supply, and the GND pin to a solid ground. Also, make sure to decouple the power supply with a 0.1uF capacitor.
The TLP351H(F) can sink or source up to 50mA of current.
To protect the TLP351H(F) from ESD, handle the device by the body, use an anti-static wrist strap or mat, and store the device in an anti-static bag or container.
The maximum operating temperature range for the TLP351H(F) is -40°C to 85°C.
