Toshiba recommends a PCB layout with a ground plane underneath the IC, and to keep the input and output traces as short as possible to minimize noise and signal degradation. Additionally, it's recommended to use a 0.1uF bypass capacitor between VCC and GND pins to reduce noise and oscillation.
To ensure proper biasing, the TLP351H requires a stable voltage supply between 4.5V to 5.5V, and the input voltage should be within the common-mode input voltage range (VCM) specified in the datasheet. Additionally, the output load should be within the recommended range to avoid output voltage saturation.
The maximum allowable power dissipation for the TLP351H is dependent on the ambient temperature and the package type. For the TLP351H in a SOP8 package, the maximum power dissipation is 500mW at an ambient temperature of 25°C. However, this value can be derated based on the actual operating temperature and package type.
The TLP351H is rated for operation up to 125°C, but the device's performance and reliability may degrade at high temperatures. It's recommended to consult the datasheet and application notes for guidance on using the TLP351H in high-temperature environments, and to consider derating the device's performance and power dissipation accordingly.
To troubleshoot issues with the TLP351H, start by verifying the PCB layout and ensuring that the device is properly biased and loaded. Check for noise and signal integrity issues, and ensure that the input and output signals are within the recommended ranges. If issues persist, consult the datasheet and application notes, and consider seeking support from Toshiba's technical support team.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TLP351H Overview

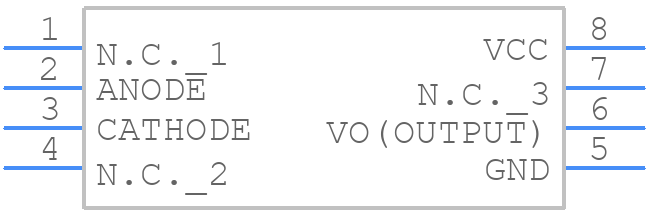

Use the download button to access the TLP351H schematic symbol and PCB footprint.
To find more CAD model downloads similar to this part, try a partial part number search, like TLP35,
or try a keyword search, such as Optocoupler
