TLP352(D4-TP1,F) - Toshiba

Description: Isolated Gate Drivers Photocoupler, Photo IC Output

Download TLP352(D4-TP1,F) Model

Schematic
symbols

PCB
footprints

3D
models

Alert me if there are changes to this TLP352(D4-TP1,F) model

Email notifications will be applied after download.

Send part feedback

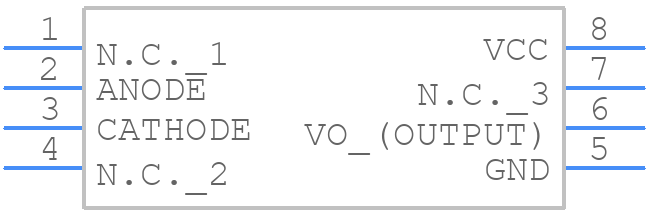

Symbol

TLP352(D4-TP1,F) - Toshiba - PCB symbol

PCB Footprints

TLP352(D4-TP1,F) - Toshiba PCB footprint - Small Outline Packages - Small Outline Packages - 11-10C401S_2023

3D Models

TLP352(D4-TP1,F) - Toshiba - 3D model - Small Outline Packages - 11-10C401S_2023

Datasheet Download Datasheet
Stock & Prices Price & Stock for TLP352(D4-TP1,F)
Part Number TLP352(D4-TP1,F)
Manufacturer Toshiba
Pin Count 8
Part Category Phototransistor
Package Category Small Outline Packages
Footprint Name Small Outline Packages - 11-10C401S_2023
Released Date Mar 9, 2023
Last Modified Date Mar 9, 2023 6:25 AM UTC
Pinout / Pin List Click Here (Member Only)

TLP352(D4-TP1,F) Details

Manufacturer Part Number:
TLP352(D4-TP1,F)
Rohs Code:
Yes
Part Life Cycle Code:
Active
HTS Code:
8541.40.80.00
Factory Lead Time:
26 Weeks
Manufacturer:
Toshiba America Electronic Components
YTEOL:
6
Additional Feature:
OPEN COLLECTOR, UL APPROVED, VDE APPROVED
Configuration:
SINGLE
Forward Current-Max:
0.02 A
Isolation Voltage-Max:
3750 V
Mounting Feature:
SURFACE MOUNT
Number of Elements:
1
Number of Functions:
1
On-State Current-Max:
2.5 A
Operating Temperature-Max:
125 °C
Operating Temperature-Min:
-40 °C
Optoelectronic Device Type:
LOGIC IC OUTPUT OPTOCOUPLER
Packing Method:
TAPE
Response Time-Max:
2e-7 s
Response Time-Nom:
1.3e-7 ns
Supply Voltage-Min:
15 V
Surface Mount:
YES

TLP352(D4-TP1,F) Frequently Asked Questions (FAQs)

The recommended soldering temperature for the TLP352 is 260°C (500°F) for 3 seconds or less.
Handle the TLP352 in a static-safe environment, wear a wrist strap or use an anti-static mat, and avoid touching the pins or leads.
The maximum reverse voltage that the TLP352 can withstand is 20V.
Store the TLP352 in a dry, cool place, away from direct sunlight and moisture, and avoid exposing it to extreme temperatures or humidity.
The TLP352 is rated for operation up to 85°C (185°F), but it's not recommended for use in high-temperature environments above 100°C (212°F).

Trust Checks

Community Provided

System Verified

Community Approved

TLP352(D4-TP1,F) Overview

Use the download button to access the TLP352(D4-TP1,F) schematic symbol, PCB footprint, and 3D model.

To find more CAD model downloads similar to this part, try a partial part number search, like TLP35, or try a keyword search, such as Optocoupler
