TLP352(F) - Toshiba

Description: Photocoupler, IC, 2.5A peak, DIP8

Download TLP352(F) Model

Schematic
symbols

PCB
footprints

3D
models

Alert me if there are changes to this TLP352(F) model

Email notifications will be applied after download.

Send part feedback

Symbol

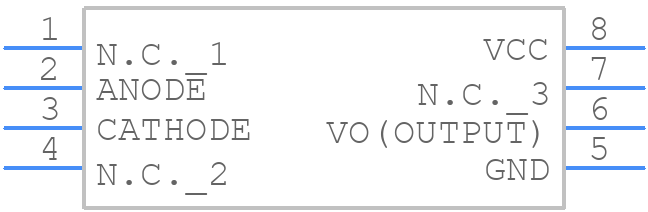

TLP352(F) - Toshiba - PCB symbol

PCB Footprints

TLP352(F) - Toshiba PCB footprint - Dual-In-Line Packages - Dual-In-Line Packages - TLP352(F)

3D Models

TLP352(F) - Toshiba - 3D model - Dual-In-Line Packages - TLP352(F)

Datasheet Download Datasheet
Stock & Prices Price & Stock for TLP352(F)
Part Number TLP352(F)
Manufacturer Toshiba
Pin Count 8
Part Category Integrated Circuit
Package Category Dual-In-Line Packages
Footprint Name Dual-In-Line Packages - TLP352(F)
Released Date Mar 30, 2019
Last Modified Date Jun 22, 2023 2:40 AM UTC
Pinout / Pin List Click Here (Member Only)

TLP352(F) Details

Manufacturer Part Number:
TLP352(F)
Rohs Code:
Yes
Part Life Cycle Code:
Active
Package Description:
DIP-8
Reach Compliance Code:
Unknown
HTS Code:
8541.40.80.00
Factory Lead Time:
26 Weeks
Manufacturer:
Toshiba America Electronic Components
YTEOL:
7
Additional Feature:
OPEN COLLECTOR, UL APPROVED
Configuration:
SINGLE
Forward Current-Max:
0.02 A
Isolation Voltage-Max:
3750 V
Mounting Feature:
THROUGH HOLE MOUNT
Number of Elements:
1
Number of Functions:
1
On-State Current-Max:
2.5 A
Operating Temperature-Max:
125 °C
Operating Temperature-Min:
-40 °C
Optoelectronic Device Type:
LOGIC IC OUTPUT OPTOCOUPLER
Response Time-Max:
2e-7 s
Response Time-Nom:
1.3e-7 ns
Supply Voltage-Min:
15 V
Surface Mount:
NO

TLP352(F) Frequently Asked Questions (FAQs)

The recommended operating voltage range for the TLP352(F) is 4.5V to 5.5V.
To ensure proper biasing, connect the VCC pin to a stable 5V power supply, and decouple it with a 0.1uF capacitor to ground. Also, ensure the input signal is within the recommended voltage range.
The TLP352(F) can sink or source up to 15mA of current.
To protect the TLP352(F) from ESD, handle the device by the body, use an anti-static wrist strap, and store the device in an anti-static bag or container.
The maximum operating temperature range for the TLP352(F) is -40°C to 85°C.

Trust Checks

Community Provided

System Verified

Community Approved

TLP352(F) Overview

Use the download button to access the TLP352(F) schematic symbol, PCB footprint, and 3D model.

To find more CAD model downloads similar to this part, try a partial part number search, like TLP35, or try a keyword search, such as Optocoupler
