Part Image

TLP352 - Toshiba

Description: Toshiba TLP352 AC Input Infrared LED Output Optocoupler, Through Hole, 8-Pin DIP

Download TLP352 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

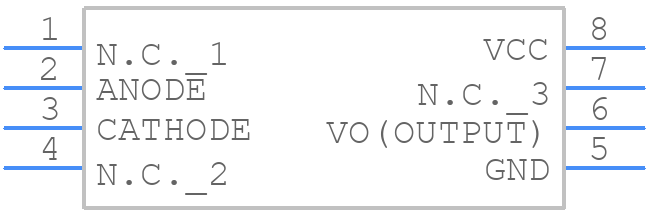

TLP352 - Toshiba - PCB symbol
click to zoom
PCB Footprints
TLP352 - Toshiba PCB footprint - Dual-In-Line Packages - Dual-In-Line Packages - 11-10C4S_1
click to zoom
3D Models
TLP352 - Toshiba - 3D model - Dual-In-Line Packages - 11-10C4S_1
click to zoom

TLP352 Details

  • Manufacturer Part Number:

    TLP352

  • Part Life Cycle Code:

    Active

  • Package Description:

    11-10C4S, DIP-8

  • HTS Code:

    8541.40.80.00

  • Manufacturer:

    Toshiba America Electronic Components

  • YTEOL:

    7

  • Additional Feature:

    UL APPROVED

  • Configuration:

    SINGLE

  • Forward Current-Max:

    0.02 A

  • Isolation Voltage-Max:

    3750 V

  • Mounting Feature:

    THROUGH HOLE MOUNT

  • Number of Elements:

    1

  • Number of Functions:

    1

  • On-State Current-Max:

    2.5 A

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Optoelectronic Device Type:

    LOGIC IC OUTPUT OPTOCOUPLER

  • Power Dissipation-Max:

    0.26 W

  • Response Time-Max:

    2e-7 s

  • Response Time-Nom:

    1.3e-7 ns

  • Supply Voltage-Min:

    15 V

  • Supply Voltage-Nom:

    30 V

  • Surface Mount:

    NO

TLP352 Frequently Asked Questions (FAQs)

  • The recommended operating temperature range for the TLP352 is -40°C to 100°C.
  • To ensure reliability in high-temperature applications, it is recommended to derate the device's current and voltage ratings according to the temperature derating curve provided in the datasheet.
  • The maximum allowable voltage for the TLP352 is 80V, but it is recommended to operate the device at a voltage below 60V to ensure reliable operation.
  • The correct resistor value for the input LED of the TLP352 can be calculated using the formula: R = (Vcc - Vf) / If, where Vcc is the supply voltage, Vf is the forward voltage of the LED, and If is the desired forward current.
  • The typical propagation delay time for the TLP352 is around 10-20 μs, but this can vary depending on the specific application and operating conditions.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

TLP352 Overview

Use the download button to access the TLP352 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TLP35, or try a keyword search, such as Optocoupler
