TLP352F(D4-TP4,F) - Toshiba

Description: Optically Isolated Gate Drivers Photocoupler, Photo IC Output

Download TLP352F(D4-TP4,F) Model

Schematic
symbols

PCB
footprints

3D
models

Alert me if there are changes to this TLP352F(D4-TP4,F) model

Email notifications will be applied after download.

Send part feedback

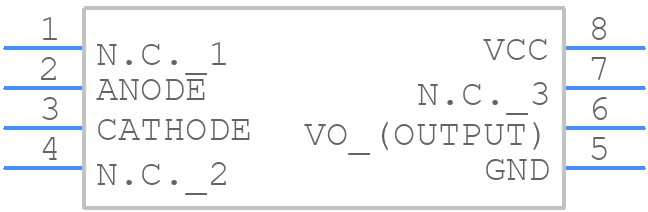

Symbol

TLP352F(D4-TP4,F) - Toshiba - PCB symbol

PCB Footprints

TLP352F(D4-TP4,F) - Toshiba PCB footprint - Dual-In-Line Packages - Dual-In-Line Packages - 11-10C402S_2024

3D Models

TLP352F(D4-TP4,F) - Toshiba - 3D model - Dual-In-Line Packages - 11-10C402S_2024

Datasheet Download Datasheet
Stock & Prices Price & Stock for TLP352F(D4-TP4,F)
Part Number TLP352F(D4-TP4,F)
Manufacturer Toshiba
Pin Count 8
Part Category Photodiode
Package Category Dual-In-Line Packages
Footprint Name Dual-In-Line Packages - 11-10C402S_2024
Released Date Jun 27, 2025
Last Modified Date Jun 27, 2025 4:20 AM UTC
Pinout / Pin List Click Here (Member Only)

TLP352F(D4-TP4,F) Details

Manufacturer Part Number:
TLP352F(D4-TP4,F)
Rohs Code:
Yes
Part Life Cycle Code:
Active
Reach Compliance Code:
Unknown
HTS Code:
8541.40.80.00
Factory Lead Time:
26 Weeks
Manufacturer:
Toshiba America Electronic Components
YTEOL:
6
Additional Feature:
OPEN COLLECTOR, UL APPROVED, VDE APPROVED
Configuration:
SINGLE
Forward Current-Max:
0.02 A
Isolation Voltage-Max:
3750 V
Mounting Feature:
SURFACE MOUNT
Number of Elements:
1
Number of Functions:
1
On-State Current-Max:
2.5 A
Operating Temperature-Max:
125 °C
Operating Temperature-Min:
-40 °C
Optoelectronic Device Type:
LOGIC IC OUTPUT OPTOCOUPLER
Packing Method:
TAPE
Response Time-Max:
2e-7 s
Response Time-Nom:
1.3e-7 ns
Supply Voltage-Min:
15 V
Surface Mount:
YES

TLP352F(D4-TP4,F) Frequently Asked Questions (FAQs)

The recommended operating temperature range for the TLP352F is -20°C to 85°C.
Handle the TLP352F by the edges to prevent damage to the photodiode. Avoid touching the optical surface or the leads to prevent contamination and electrical noise.
The maximum reverse voltage that the TLP352F can withstand is 20V.
Store the TLP352F in a dry, dark place at room temperature (20°C to 30°C) and humidity below 60%. Avoid exposure to direct sunlight, moisture, and contaminants.
While the TLP352F is designed to operate in a normal humidity environment, it's not recommended for use in high-humidity environments (>80% RH) without proper protection and sealing.

Trust Checks

Community Provided

System Verified

Community Approved

TLP352F(D4-TP4,F) Overview

Use the download button to access the TLP352F(D4-TP4,F) schematic symbol, PCB footprint, and 3D model.

To find more CAD model downloads similar to this part, try a partial part number search, like TLP35, or try a keyword search, such as Optocoupler
