TLP352F - Toshiba

Description: Photocoupler (photo-IC output), IGBT driver, IOP=+/-2.5 A, 3750 Vrms, DIP8(F type)

Download TLP352F Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

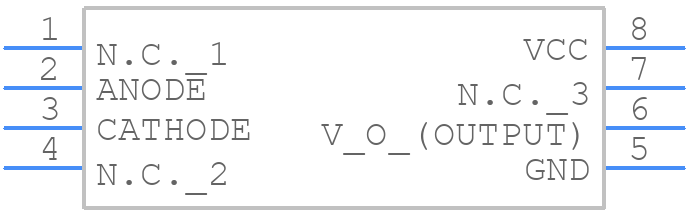

TLP352F - Toshiba - PCB symbol
click to zoom
PCB Footprints
TLP352F - Toshiba PCB footprint - Dual-In-Line Packages - Dual-In-Line Packages - 11-10C402S
click to zoom
3D Models
TLP352F - Toshiba - 3D model - Dual-In-Line Packages - 11-10C402S
click to zoom

TLP352F Details

  • Manufacturer Part Number:

    TLP352F

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    DIP-8

  • HTS Code:

    8541.40.80.00

  • Factory Lead Time:

    12 Weeks

  • Manufacturer:

    Toshiba America Electronic Components

  • YTEOL:

    7

  • Additional Feature:

    UL APPROVED

  • Configuration:

    SINGLE

  • Forward Current-Max:

    0.02 A

  • Isolation Voltage-Max:

    3750 V

  • Mounting Feature:

    THROUGH HOLE MOUNT

  • Number of Elements:

    1

  • Number of Functions:

    1

  • On-State Current-Max:

    2.5 A

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Optoelectronic Device Type:

    LOGIC IC OUTPUT OPTOCOUPLER

  • Power Dissipation-Max:

    0.26 W

  • Response Time-Max:

    2e-7 s

  • Response Time-Nom:

    1.3e-7 ns

  • Supply Voltage-Min:

    15 V

  • Supply Voltage-Nom:

    30 V

  • Surface Mount:

    NO

TLP352F Frequently Asked Questions (FAQs)

  • Toshiba recommends a PCB layout with a solid ground plane, short traces, and minimal vias to reduce noise and ensure signal integrity. A 4-layer PCB with a dedicated power plane and a separate ground plane is also recommended.
  • The TLP352F requires a bias voltage of 3.3V to 5V on the VCC pin, and a bias current of 1.5mA to 3mA on the VREF pin. Ensure that the bias voltage and current are within the recommended range to achieve optimal performance.
  • The maximum allowable power dissipation for the TLP352F is 250mW. Ensure that the device is operated within this power dissipation limit to prevent overheating and damage.
  • The TLP352F has an output current limitation of 50mA. To handle this limitation, ensure that the output current is within the recommended range, and consider using an external buffer or amplifier if higher output currents are required.
  • The recommended operating temperature range for the TLP352F is -40°C to 85°C. Operating the device outside this range may affect its performance and reliability.
