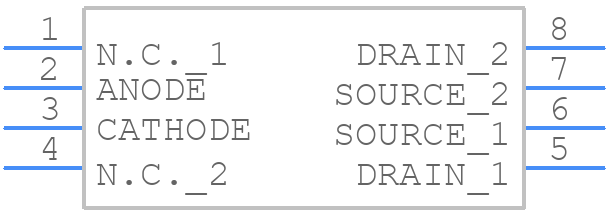

TLP3549(LF5,F - Toshiba

TLP3549(LF5,F Details

• Manufacturer Part Number:

  TLP3549(LF5,F

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

• HTS Code:

  8541.40.95.00

• Manufacturer:

  Toshiba America Electronic Components

• YTEOL:

  6

• Additional Feature:

  UL RECOGNIZED

• Configuration:

  SINGLE WITH BUILT-IN DIODE

• Control Current:

  0.005 A

• Control Voltage:

  1.5 V

• Forward Current-Max:

  0.025 A

• Input Type:

  DC

• Isolation Voltage-Max:

  2500 V

• Mounting Feature:

  SURFACE MOUNT

• Number of Elements:

  1

• On-State Current-Max:

  0.6 A

• On-state Resistance-Max:

  2 Ω

• Operating Temperature-Max:

  85 °C

• Operating Temperature-Min:

  -40 °C

• Optoelectronic Device Type:

  TRANSISTOR OUTPUT SSR

• Output Circuit Type:

  MOSFET

• Overall Height:

  4.1 mm

• Overall Length:

  9.66 mm

• Packing Method:

  MAGAZINE

• Surface Mount:

  YES
