A good PCB layout for the TLP388(D4GB-TL,E) would involve keeping the input and output traces short and separate, using a solid ground plane, and placing the device close to the power source. Additionally, it's recommended to use a 10uF capacitor between the VIN and GND pins to filter out noise.
To ensure reliable operation over the full temperature range, it's essential to follow proper thermal design guidelines, such as providing adequate heat sinking, using a thermally conductive PCB material, and avoiding thermal hotspots. Additionally, ensure that the device is operated within its specified temperature range (-40°C to 125°C).
The TLP388(D4GB-TL,E) has built-in ESD protection, but it's still recommended to follow proper ESD handling procedures during assembly and testing. For latch-up prevention, ensure that the device is powered up and down slowly, and avoid applying voltage to the output pins before the input pins.
The TLP388(D4GB-TL,E) is a general-purpose device, but it's not specifically designed for high-reliability or safety-critical applications. If you need a device for such applications, consider using a device specifically designed for high-reliability or safety-critical applications, such as those with ASIL or IEC 61508 certifications.
To troubleshoot issues with the TLP388(D4GB-TL,E), start by verifying the input voltage, output voltage, and current consumption. Check for proper PCB layout, decoupling, and thermal design. Use an oscilloscope to monitor the input and output waveforms, and consult the datasheet and application notes for guidance on troubleshooting specific issues.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TLP388(D4GB-TL,E Overview

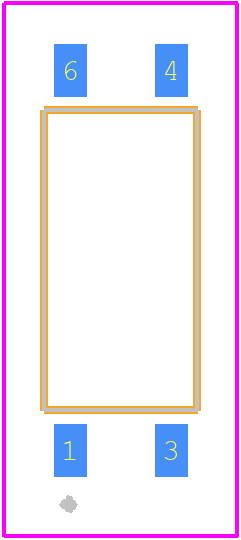

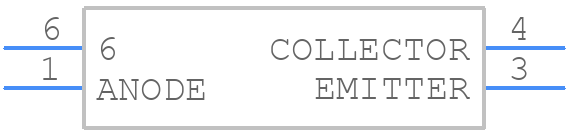

Use the download button to access the TLP388(D4GB-TL,E schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TLP38,
or try a keyword search, such as Optocoupler
