TLP4006G(F) - Toshiba

Description: MOSFET Output Optocouplers Photorelay Voff=350V Ion=0.12A

Download TLP4006G(F) Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

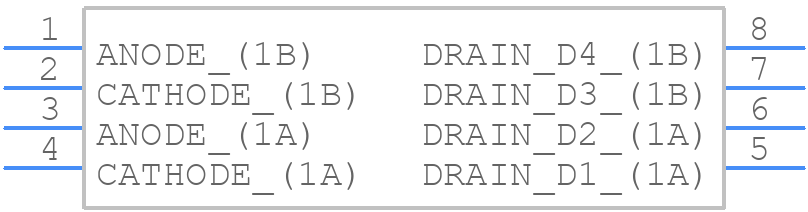

TLP4006G(F) - Toshiba - PCB symbol
click to zoom
PCB Footprints
TLP4006G(F) - Toshiba PCB footprint - Dual-In-Line Packages - Dual-In-Line Packages - TLP4006G(F)
click to zoom
3D Models
TLP4006G(F) - Toshiba - 3D model - Dual-In-Line Packages - TLP4006G(F)
click to zoom

TLP4006G(F) Details

  • Manufacturer Part Number:

    TLP4006G(F)

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • HTS Code:

    8541.40.95.00

  • Manufacturer:

    Toshiba America Electronic Components

  • YTEOL:

    0

  • Configuration:

    SEPARATE, 2 ELEMENTS WITH BUILT-IN DIODE

  • Control Current:

    0.005 A

  • Control Voltage:

    1 V

  • Input Type:

    DC

  • Isolation Voltage-Max:

    2500 V

  • Mounting Feature:

    THROUGH HOLE MOUNT

  • Number of Elements:

    2

  • On-State Current-Max:

    0.12 A

  • On-state Resistance-Max:

    25 Ω

  • Operating Temperature-Max:

    65 °C

  • Operating Temperature-Min:

    -20 °C

  • Output Circuit Type:

    MOSFET

  • Overall Height:

    3.65 mm

  • Overall Length:

    9.66 mm

  • Surface Mount:

    NO
