TLP4026G(F) - Toshiba

Description: MOSFET Output Optocouplers Photorelay Voff=350V Ion=0.12A

Download TLP4026G(F) Model

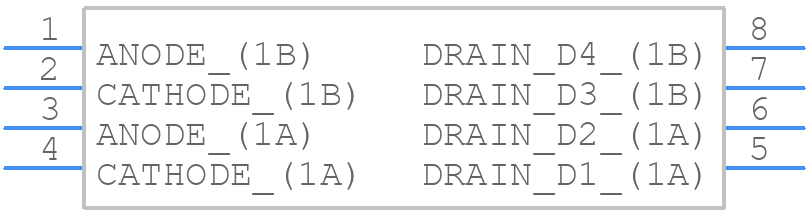

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
TLP4026G(F) - Toshiba PCB footprint - Small Outline Packages - Small Outline Packages - 11-10H1
click to zoom

TLP4026G(F) Details

  • Manufacturer Part Number:

    TLP4026G(F)

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • HTS Code:

    8541.40.95.00

  • Manufacturer:

    Toshiba America Electronic Components

  • YTEOL:

    0

  • Configuration:

    SEPARATE, 2 ELEMENTS WITH BUILT-IN DIODE

  • Control Current:

    0.005 A

  • Control Voltage:

    1 V

  • Forward Current-Max:

    0.025 A

  • Forward Voltage-Max:

    1.3 V

  • Input Type:

    DC

  • Isolation Voltage-Max:

    1500 V

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Elements:

    2

  • On-state Resistance-Max:

    25 Ω

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Optoelectronic Device Type:

    TRANSISTOR OUTPUT SSR

  • Output Circuit Type:

    MOSFET

  • Overall Height:

    2 mm

  • Overall Length:

    9.4 mm

  • Response Time-Max:

    0.001 s

  • Surface Mount:

    YES

TLP4026G(F) Frequently Asked Questions (FAQs)

  • A good PCB layout for the TLP4026G(F) should minimize the distance between the input and output pins, use a solid ground plane, and keep the input and output traces as short as possible to reduce electromagnetic interference (EMI).
  • To ensure reliability in high-temperature applications, it is recommended to derate the output current and voltage according to the temperature derating curve provided in the datasheet. Additionally, ensure good thermal design and heat dissipation to prevent overheating.
  • The maximum allowable voltage drop across the TLP4026G(F) is 600 mV at the maximum output current. Exceeding this voltage drop may affect the device's reliability and performance.
  • Yes, the TLP4026G(F) can be used in switching power supply applications. However, it is essential to ensure that the device is properly bypassed and filtered to prevent electromagnetic interference (EMI) and noise issues.
  • To protect the TLP4026G(F) from overvoltage and overcurrent conditions, use a voltage regulator or a surge protector, and consider adding overcurrent protection devices such as fuses or PTC thermistors.
