TLP4590A(F - Toshiba

Description: MOSFET Output Optocouplers Photorelay; 1-Form-B; DIP6; RoHS; PTH

Download TLP4590A(F Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

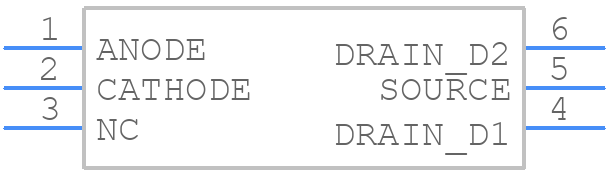

TLP4590A(F - Toshiba - PCB symbol
click to zoom
PCB Footprints
TLP4590A(F - Toshiba PCB footprint - Dual-In-Line Packages - Dual-In-Line Packages - 11-7A8S_2023
click to zoom
3D Models
TLP4590A(F - Toshiba - 3D model - Dual-In-Line Packages - 11-7A8S_2023
click to zoom

TLP4590A(F Details

  • Manufacturer Part Number:

    TLP4590A(F

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    DIP-6

  • HTS Code:

    8541.40.95.00

  • Factory Lead Time:

    24 Weeks

  • Manufacturer:

    Toshiba America Electronic Components

  • YTEOL:

    6

  • Additional Feature:

    UL RECOGNIZED

  • Configuration:

    SINGLE

  • Control Current:

    0.005 A

  • Control Voltage:

    1.1 V

  • Forward Current-Max:

    0.01 A

  • Input Type:

    DC

  • Isolation Voltage-Max:

    5000 V

  • Mounting Feature:

    THROUGH HOLE MOUNT

  • Number of Elements:

    1

  • On-State Current-Max:

    0.12 A

  • On-state Resistance-Max:

    0.6 Ω

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -20 °C

  • Optoelectronic Device Type:

    TRANSISTOR OUTPUT SSR

  • Output Circuit Type:

    MOSFET

  • Overall Height:

    4.85 mm

  • Overall Length:

    6.4 mm

  • Packing Method:

    MAGAZINE

  • Surface Mount:

    NO

TLP4590A(F Frequently Asked Questions (FAQs)

  • The recommended PCB layout for optimal performance of the TLP4590A(F involves keeping the input and output traces as short as possible, using a solid ground plane, and placing a 0.1uF bypass capacitor between VCC and GND as close to the device as possible.
  • To ensure reliable operation of the TLP4590A(F in high-temperature environments, it is recommended to follow proper thermal design guidelines, such as using a heat sink, ensuring good airflow, and keeping the device within its specified operating temperature range.
  • The maximum allowable voltage on the input pins of the TLP4590A(F is 5.5V, which is the absolute maximum rating. However, it is recommended to keep the input voltage within the specified operating range of 3.3V to 5V for reliable operation.
  • Yes, the TLP4590A(F can be used in a 3.3V system with a 5V output. The device is designed to operate with a 3.3V supply voltage and can drive outputs up to 5V.
  • The typical propagation delay of the TLP4590A(F is around 10ns, but this can vary depending on the specific application and operating conditions.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

TLP4590A(F Overview

Use the download button to access the TLP4590A(F schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TLP45, or try a keyword search, such as Solid State Relays
