Toshiba recommends a PCB layout with a solid ground plane, short traces, and minimal vias to reduce noise and ensure signal integrity. A 4-layer PCB with a dedicated power plane and a separate ground plane is recommended.
To ensure reliability in high-temperature applications, it is recommended to follow proper thermal design guidelines, such as using a heat sink, reducing power dissipation, and ensuring good airflow. Additionally, Toshiba recommends operating the device within the specified temperature range and avoiding thermal shocks.
The maximum allowable voltage on the output pins of TLP4590A is 7V, which is the maximum rating for the output transistors. Exceeding this voltage may damage the device.
Yes, the TLP4590A can be used in switching power supply applications, but it is essential to ensure that the device is operated within the specified frequency range and that the output voltage is within the recommended range. Additionally, proper filtering and decoupling are necessary to minimize noise and ensure stable operation.
To troubleshoot issues with the TLP4590A, it is recommended to check the PCB layout, ensure proper decoupling and filtering, and verify that the input voltage and current are within the specified range. Additionally, checking the output voltage and current waveforms using an oscilloscope can help identify the root cause of the issue.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TLP4590A(TP1,F Overview

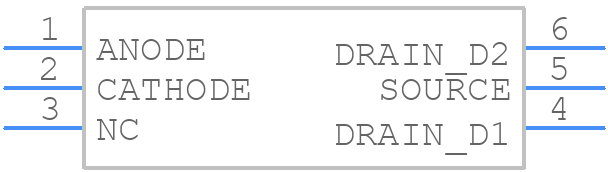

Use the download button to access the TLP4590A(TP1,F schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TLP45,
or try a keyword search, such as Solid State Relays
