TLP504A(F) - Toshiba

Description: TLP504A(F) Toshiba TLP504A(F) DC Input Transistor Output Dual Optocoupler, Through Hole, 8-Pin PDIP

Download TLP504A(F) Model

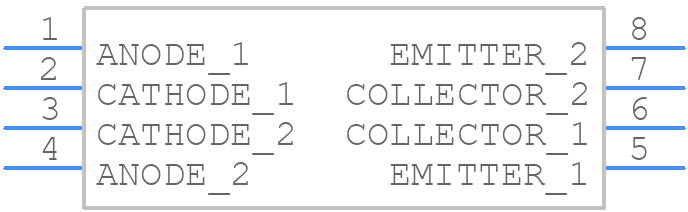

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
TLP504A(F) - Toshiba PCB footprint - Dual-In-Line Packages - Dual-In-Line Packages - 11-10C4 (8PDIP)
click to zoom
3D Models
TLP504A(F) - Toshiba  - 3D model - Dual-In-Line Packages - 11-10C4 (8PDIP)
click to zoom

TLP504A(F) Details

  • Manufacturer Part Number:

    TLP504A(F)

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    PLASTIC, 11-10C4, DIP-8

  • HTS Code:

    8541.40.80.00

  • Manufacturer:

    Toshiba America Electronic Components

  • YTEOL:

    0

  • Additional Feature:

    UL RECOGNIZED

  • Coll-Emtr Bkdn Voltage-Min:

    55 V

  • Configuration:

    SEPARATE, 2 CHANNELS

  • Current Transfer Ratio-Min:

    50%

  • Dark Current-Max:

    100 nA

  • Forward Current-Max:

    0.02 A

  • Forward Voltage-Max:

    1.3 V

  • Isolation Voltage-Max:

    2500 V

  • Mounting Feature:

    THROUGH HOLE MOUNT

  • Number of Elements:

    2

  • On-State Current-Max:

    0.05 A

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -25 °C

  • Optoelectronic Device Type:

    TRANSISTOR OUTPUT OPTOCOUPLER

  • Power Dissipation-Max:

    0.15 W

  • Response Time-Max:

    0.000002 s

  • Surface Mount:

    NO
