TLP504A-2(F) - Toshiba

Description: Toshiba, TLP504A-2(F) DC Input Transistor Output Quad Optocoupler, Through Hole, 16-Pin PDIP

Download TLP504A-2(F) Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

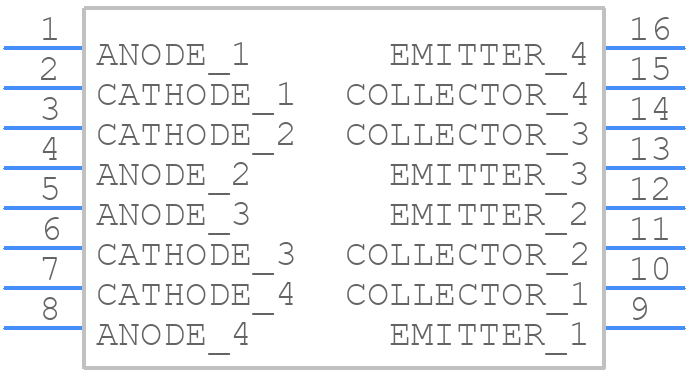

TLP504A-2(F) - Toshiba - PCB symbol
click to zoom
PCB Footprints
TLP504A-2(F) - Toshiba PCB footprint - Dual-In-Line Packages - Dual-In-Line Packages - 11-20A3
click to zoom
3D Models
TLP504A-2(F) - Toshiba - 3D model - Dual-In-Line Packages - 11-20A3
click to zoom

TLP504A-2(F) Details

  • Manufacturer Part Number:

    TLP504A-2(F)

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    PLASTIC, 11-20A3, DIP-16

  • HTS Code:

    8541.40.80.00

  • Manufacturer:

    Toshiba America Electronic Components

  • YTEOL:

    0

  • Additional Feature:

    UL RECOGNIZED

  • Coll-Emtr Bkdn Voltage-Min:

    55 V

  • Configuration:

    SEPARATE, 4 CHANNELS

  • Current Transfer Ratio-Min:

    50%

  • Current Transfer Ratio-Nom:

    50%

  • Dark Current-Max:

    100 nA

  • Forward Current-Max:

    0.02 A

  • Forward Voltage-Max:

    1.3 V

  • Isolation Voltage-Max:

    2500 V

  • JESD-609 Code:

    e3

  • Mounting Feature:

    THROUGH HOLE MOUNT

  • Number of Elements:

    4

  • On-State Current-Max:

    0.05 A

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -25 °C

  • Optoelectronic Device Type:

    TRANSISTOR OUTPUT OPTOCOUPLER

  • Power Dissipation-Max:

    0.1 W

  • Response Time-Max:

    0.000002 s

  • Surface Mount:

    NO

  • Terminal Finish:

    Tin (Sn)

TLP504A-2(F) Frequently Asked Questions (FAQs)

  • The recommended operating voltage range for the TLP504A-2(F) is 4.5V to 5.5V.
  • To ensure reliability in high-temperature applications, it is recommended to follow the derating guidelines provided in the datasheet, and to consider using a heat sink or thermal management system to keep the junction temperature below 125°C.
  • The maximum current rating for the TLP504A-2(F) is 50mA.
  • To handle ESD protection, it is recommended to follow proper ESD handling procedures, such as using an ESD wrist strap or mat, and to ensure that the device is stored in an ESD-protective package.
  • Yes, the TLP504A-2(F) is AEC-Q100 qualified, making it suitable for use in automotive applications.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

TLP504A-2(F) Overview

Use the download button to access the TLP504A-2(F) schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TLP50, or try a keyword search, such as Optocoupler
