Technical Content
Part Image

TLP504A-2(GB,F) - Toshiba

Description: Transistor Output Optocouplers 55Vceo 2500Vrms 2 Channels

Download TLP504A-2(GB,F) Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

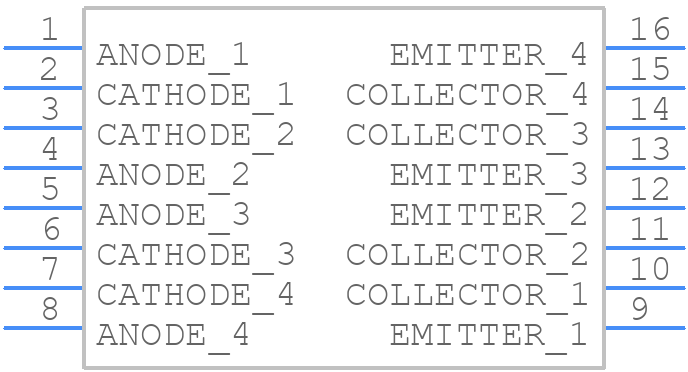

TLP504A-2(GB,F) - Toshiba - PCB symbol
click to zoom
PCB Footprints
TLP504A-2(GB,F) - Toshiba PCB footprint - Dual-In-Line Packages - Dual-In-Line Packages - 11-20A3
click to zoom
3D Models
TLP504A-2(GB,F) - Toshiba - 3D model - Dual-In-Line Packages - 11-20A3
click to zoom

TLP504A-2(GB,F) Details

  • Manufacturer Part Number:

    TLP504A-2(GB,F)

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • HTS Code:

    8541.40.80.00

  • Manufacturer:

    Toshiba America Electronic Components

  • YTEOL:

    0

  • Additional Feature:

    UL RECOGNIZED

  • Coll-Emtr Bkdn Voltage-Min:

    55 V

  • Configuration:

    SEPARATE, 4 CHANNELS

  • Current Transfer Ratio-Min:

    100%

  • Dark Current-Max:

    100 nA

  • Forward Current-Max:

    0.05 A

  • Forward Voltage-Max:

    1.3 V

  • Isolation Voltage-Max:

    2500 V

  • Mounting Feature:

    THROUGH HOLE MOUNT

  • Number of Elements:

    4

  • On-State Current-Max:

    0.05 A

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -25 °C

  • Optoelectronic Device Type:

    TRANSISTOR OUTPUT OPTOCOUPLER

  • Power Dissipation-Max:

    0.1 W

  • Response Time-Max:

    0.000002 s

  • Surface Mount:

    NO

TLP504A-2(GB,F) Frequently Asked Questions (FAQs)

  • The recommended operating temperature range for the TLP504A-2(GB,F) is -40°C to 85°C.
  • To ensure reliability in high-temperature applications, it is recommended to derate the device's power dissipation according to the temperature derating curve provided in the datasheet.
  • The maximum allowable voltage for the TLP504A-2(GB,F) is 350V.
  • To protect the TLP504A-2(GB,F) from ESD, it is recommended to handle the device in an ESD-protected environment, use ESD-protective packaging, and follow proper handling and storage procedures.
  • Yes, the TLP504A-2(GB,F) can be used in high-frequency applications up to 100 kHz. However, it is recommended to consult the datasheet for specific frequency-related characteristics and limitations.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

TLP504A-2(GB,F) Overview

Use the download button to access the TLP504A-2(GB,F) schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TLP50, or try a keyword search, such as Optocoupler
