TLP504A-2(GB) - Toshiba

TLP504A-2(GB) Details

• Manufacturer Part Number:

  TLP504A-2(GB)

• Pbfree Code:

  No

• Part Life Cycle Code:

  Obsolete

• HTS Code:

  8541.40.80.00

• Manufacturer:

  Toshiba America Electronic Components

• YTEOL:

  0

• Additional Feature:

  UL RECOGNIZED

• Coll-Emtr Bkdn Voltage-Min:

  55 V

• Configuration:

  SEPARATE, 4 CHANNELS

• Current Transfer Ratio-Min:

  100%

• Dark Current-Max:

  100 nA

• Forward Current-Max:

  0.02 A

• Forward Voltage-Max:

  1.3 V

• Isolation Voltage-Max:

  2500 V

• JESD-609 Code:

  e0

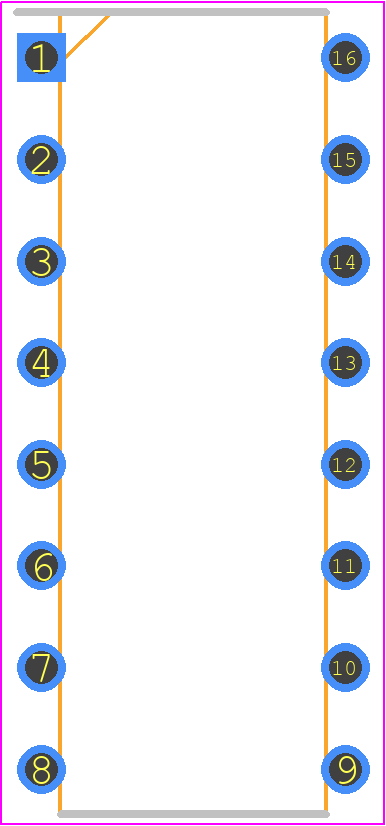

• Mounting Feature:

  THROUGH HOLE MOUNT

• Number of Elements:

  4

• On-State Current-Max:

  0.05 A

• Operating Temperature-Max:

  85 °C

• Operating Temperature-Min:

  -25 °C

• Optoelectronic Device Type:

  TRANSISTOR OUTPUT OPTOCOUPLER

• Power Dissipation-Max:

  0.1 W

• Response Time-Max:

  0.000002 s

• Surface Mount:

  NO

• Terminal Finish:

  Tin/Lead (Sn/Pb)
