TLP504A-2 - Toshiba

Description: Toshiba, TLP504A-2 DC Input Transistor Output Quad Optocoupler, Through Hole, 16-Pin PDIP

Download TLP504A-2 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

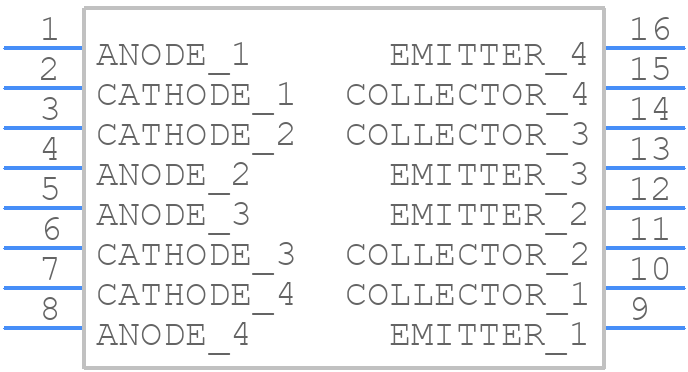

TLP504A-2 - Toshiba - PCB symbol
click to zoom
PCB Footprints

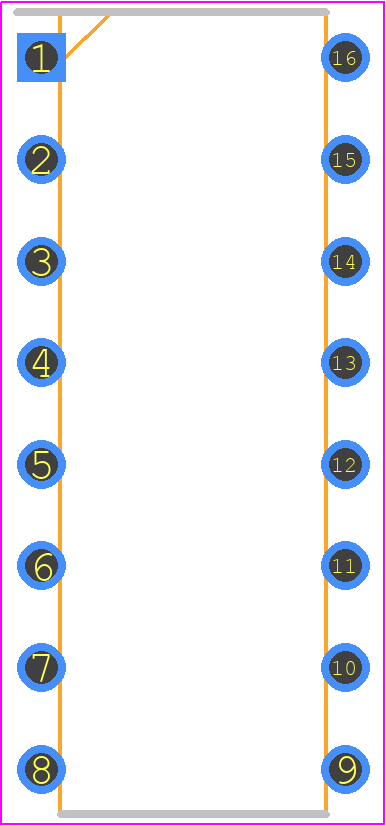

TLP504A-2 - Toshiba PCB footprint - Dual-In-Line Packages - Dual-In-Line Packages - TLP504A-2
click to zoom
3D Models
TLP504A-2 - Toshiba - 3D model - Dual-In-Line Packages - TLP504A-2
click to zoom

TLP504A-2 Details

  • Manufacturer Part Number:

    TLP504A-2

  • Pbfree Code:

    No

  • Part Life Cycle Code:

    Obsolete

  • HTS Code:

    8541.40.80.00

  • Manufacturer:

    Toshiba America Electronic Components

  • YTEOL:

    0

  • Additional Feature:

    UL RECOGNIZED

  • Coll-Emtr Bkdn Voltage-Min:

    55 V

  • Configuration:

    SEPARATE, 4 CHANNELS

  • Current Transfer Ratio-Min:

    50%

  • Dark Current-Max:

    100 nA

  • Forward Current-Max:

    0.02 A

  • Forward Voltage-Max:

    1.3 V

  • Isolation Voltage-Max:

    2500 V

  • JESD-609 Code:

    e0

  • Mounting Feature:

    THROUGH HOLE MOUNT

  • Number of Elements:

    4

  • On-State Current-Max:

    0.05 A

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -25 °C

  • Optoelectronic Device Type:

    TRANSISTOR OUTPUT OPTOCOUPLER

  • Power Dissipation-Max:

    0.1 W

  • Response Time-Max:

    0.000002 s

  • Surface Mount:

    NO

  • Terminal Finish:

    Tin/Lead (Sn/Pb)

TLP504A-2 Frequently Asked Questions (FAQs)

  • The recommended operating temperature range for the TLP504A-2 is -40°C to 100°C.
  • To ensure reliability in high-temperature applications, it is recommended to derate the device's current and voltage ratings according to the temperature derating curve provided in the datasheet.
  • The maximum allowable voltage for the TLP504A-2 is 5.5V, but it is recommended to operate the device at a voltage below 5V to ensure reliable operation.
  • The correct resistor value for the input LED of the TLP504A-2 can be calculated using the formula: R = (Vcc - Vf) / If, where Vcc is the supply voltage, Vf is the forward voltage of the LED, and If is the desired forward current.
  • The typical propagation delay time for the TLP504A-2 is around 10-20 μs, but this can vary depending on the specific application and operating conditions.
