TLP504A - Toshiba

Description: Toshiba, TLP504A DC Input Transistor Output Optocoupler, Through Hole, 8-Pin PDIP

Download TLP504A Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

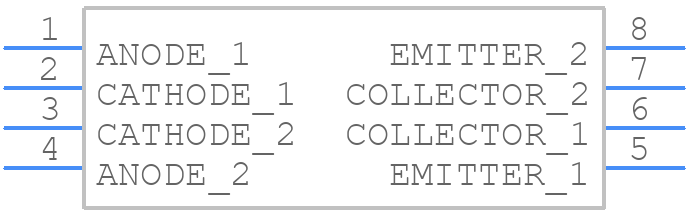

Symbol
TLP504A - Toshiba - PCB symbol
click to zoom
PCB Footprints
TLP504A - Toshiba PCB footprint - Dual-In-Line Packages - Dual-In-Line Packages - 11-10C4 (8PDIP)
click to zoom
3D Models
TLP504A - Toshiba - 3D model - Dual-In-Line Packages - 11-10C4 (8PDIP)
click to zoom

TLP504A Details

  • Manufacturer Part Number:

    TLP504A

  • Pbfree Code:

    No

  • Part Life Cycle Code:

    End Of Life

  • HTS Code:

    8541.40.80.00

  • Manufacturer:

    Toshiba America Electronic Components

  • YTEOL:

    0.4

  • Additional Feature:

    UL RECOGNIZED

  • Coll-Emtr Bkdn Voltage-Min:

    55 V

  • Configuration:

    SEPARATE, 2 CHANNELS

  • Current Transfer Ratio-Min:

    50%

  • Dark Current-Max:

    100 nA

  • Forward Current-Max:

    0.02 A

  • Forward Voltage-Max:

    1.3 V

  • Isolation Voltage-Max:

    2500 V

  • JESD-609 Code:

    e0

  • Mounting Feature:

    THROUGH HOLE MOUNT

  • Number of Elements:

    2

  • On-State Current-Max:

    0.05 A

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -25 °C

  • Optoelectronic Device Type:

    TRANSISTOR OUTPUT OPTOCOUPLER

  • Power Dissipation-Max:

    0.1 W

  • Response Time-Max:

    0.000002 s

  • Surface Mount:

    NO

  • Terminal Finish:

    Tin/Lead (Sn/Pb)

TLP504A Frequently Asked Questions (FAQs)

  • The recommended operating voltage range for the TLP504A is 4.5V to 30V.
  • To ensure proper biasing, connect the VCC pin to a stable voltage source, and decouple it with a 0.1uF capacitor to ground. Also, ensure the input voltage is within the recommended range.
  • The TLP504A can handle a maximum current of 50mA. Exceeding this limit may cause damage to the device.
  • To protect the TLP504A from ESD damage, use ESD protection devices such as TVS diodes or ESD protection arrays on the input lines, and handle the device with an anti-static wrist strap or mat.
  • The TLP504A is rated for operation up to 85°C. However, it's recommended to derate the device's performance and consider thermal management for high-temperature applications.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

TLP504A Overview

Use the download button to access the TLP504A schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TLP50, or try a keyword search, such as Optocoupler
