The recommended operating temperature range for the TLP521-4(A) is -40°C to 85°C. However, it's essential to note that the device can operate up to 125°C for a short period, but this may affect its reliability and lifespan.
To ensure proper soldering, follow the recommended soldering conditions and guidelines provided in the datasheet. Use a soldering iron with a temperature of 250°C to 260°C, and apply a soldering time of 3 seconds to 5 seconds. Also, make sure the PCB is designed with a suitable land pattern and thermal relief to prevent thermal stress.
The maximum allowable voltage for the TLP521-4(A) is 350V. Exceeding this voltage may cause permanent damage to the device. It's essential to ensure that the voltage rating is not exceeded during operation, including during transient conditions.
To prevent damage during storage and shipping, handle the TLP521-4(A) with care. Store the devices in their original packaging or in a similar anti-static package. Avoid exposing the devices to moisture, direct sunlight, or extreme temperatures. Also, follow the recommended handling and storage procedures outlined in the datasheet.
The typical lead time for the TLP521-4(A) varies depending on the region, distributor, and quantity. Typically, it ranges from 4 weeks to 12 weeks. It's recommended to check with authorized distributors or Toshiba's sales representatives for the most up-to-date lead time information.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TLP521-4(A) Overview

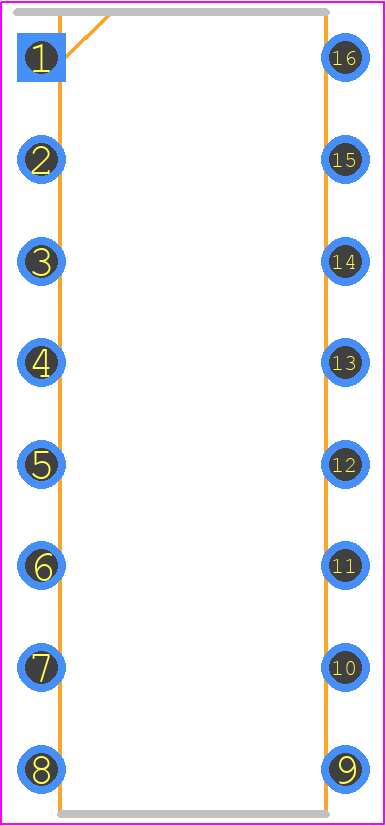

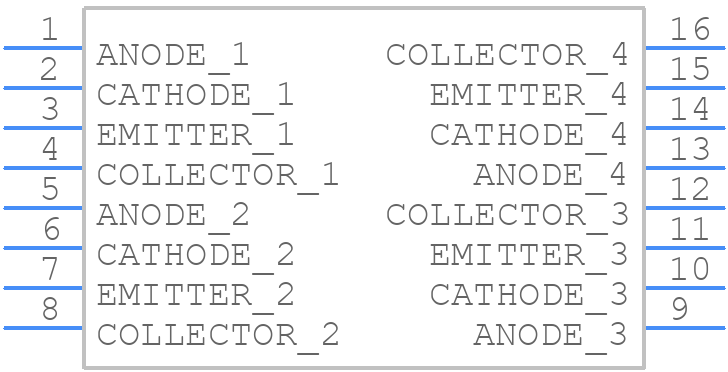

Use the download button to access the TLP521-4(A) schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TLP52,
or try a keyword search, such as Optocoupler
