TLP5214A(E - Toshiba

Description: Optocoupler Drive 1-CH 30V 1500V 16-Pin SO Tube

Download TLP5214A(E Model

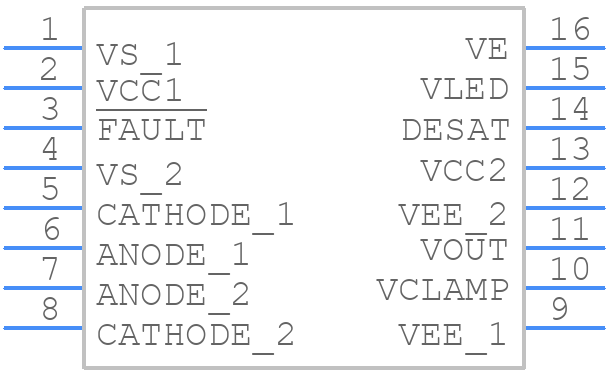

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
TLP5214A(E - Toshiba PCB footprint - Other - Other - TLP5214A(E-3
click to zoom

TLP5214A(E Details

  • Manufacturer Part Number:

    TLP5214A(E

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    SOP-16

  • HTS Code:

    8541.40.80.00

  • Factory Lead Time:

    14 Weeks

  • Manufacturer:

    Toshiba America Electronic Components

  • YTEOL:

    9

  • Additional Feature:

    UL RECOGNIZED

  • Configuration:

    COMPLEX

  • Forward Current-Max:

    0.025 A

  • Isolation Voltage-Max:

    5000 V

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Functions:

    1

  • Operating Temperature-Max:

    110 °C

  • Operating Temperature-Min:

    -40 °C

  • Optoelectronic Device Type:

    LOGIC IC OUTPUT OPTOCOUPLER

  • Response Time-Nom:

    3.2e-8 ns

  • Supply Voltage-Min:

    15 V

  • Surface Mount:

    YES

TLP5214A(E Frequently Asked Questions (FAQs)

  • Toshiba provides a recommended PCB layout in the application note 'TLP5214A(E) PCB Layout Guide' which includes guidelines for component placement, routing, and thermal management to ensure optimal performance and reliability.
  • The TLP5214A(E) requires a stable power supply voltage (VCC) and a bias voltage (VBIAS) to operate reliably. Ensure that VCC is within the recommended range (4.5V to 5.5V) and VBIAS is set to the recommended value (2.5V) using a voltage divider or a dedicated bias voltage generator.
  • The maximum allowable current through the TLP5214A(E) output pins is 50mA. Exceeding this limit may cause damage to the device or affect its reliability.
  • Store the TLP5214A(E) in a dry, cool place away from direct sunlight and moisture. Use anti-static packaging and handling procedures to prevent electrostatic discharge (ESD) damage. Avoid bending or flexing the leads during handling and assembly.
  • The recommended operating temperature range for the TLP5214A(E) is -40°C to 85°C. Operating the device outside this range may affect its performance, reliability, or lifespan.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

TLP5214A(E Overview

Use the download button to access the TLP5214A(E schematic symbol and PCB footprint.
To find more CAD model downloads similar to this part, try a partial part number search, like TLP52, or try a keyword search, such as Optocoupler
