TLP541G(N,F) - Toshiba

Description: Triac & SCR Output Optocouplers 400Vdrm 2500Vrms Low trigger current

Download TLP541G(N,F) Model

Schematic
symbols

PCB
footprints

3D
models

Alert me if there are changes to this TLP541G(N,F) model

Email notifications will be applied after download.

Send part feedback

Symbol

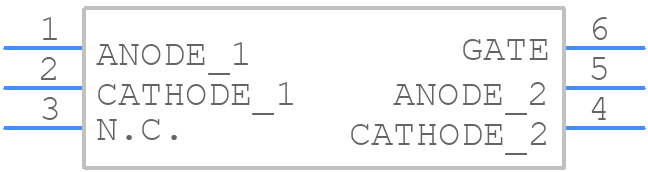

TLP541G(N,F) - Toshiba - PCB symbol

PCB Footprints

TLP541G(N,F) - Toshiba PCB footprint - Dual-In-Line Packages - Dual-In-Line Packages - 11-7a8

3D Models

TLP541G(N,F) - Toshiba - 3D model - Dual-In-Line Packages - 11-7a8

Datasheet Download Datasheet
Stock & Prices Price & Stock for TLP541G(N,F)
Part Number TLP541G(N,F)
Manufacturer Toshiba
Pin Count 6
Part Category Phototransistor
Package Category Dual-In-Line Packages
Footprint Name Dual-In-Line Packages - 11-7a8
Released Date Apr 15, 2022
Last Modified Date Mar 7, 2023 4:10 PM UTC
Pinout / Pin List Click Here (Member Only)

TLP541G(N,F) Details

Manufacturer Part Number:
TLP541G(N,F)
Manufacturer:
Toshiba America Electronic Components

Trust Checks

Community Provided

System Verified

Community Approved

TLP541G(N,F) Overview

Use the download button to access the TLP541G(N,F) schematic symbol, PCB footprint, and 3D model.

To find more CAD model downloads similar to this part, try a partial part number search, like TLP54, or try a keyword search, such as Optocoupler
