TLP548J(F) - Toshiba

Description: Toshiba, TLP548J(F) DC Input Photothyristor Output Optocoupler, Through Hole, 6-Pin DIP

Download TLP548J(F) Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

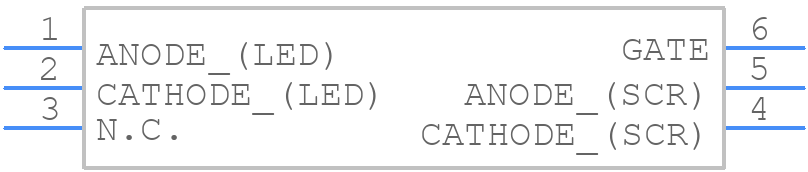

Symbol
TLP548J(F) - Toshiba - PCB symbol
click to zoom
PCB Footprints
TLP548J(F) - Toshiba PCB footprint - Dual-In-Line Packages - Dual-In-Line Packages - 11-7A8S_2024
click to zoom
3D Models
TLP548J(F) - Toshiba - 3D model - Dual-In-Line Packages - 11-7A8S_2024
click to zoom

TLP548J(F) Details

  • Manufacturer Part Number:

    TLP548J(F)

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • HTS Code:

    8541.40.80.00

  • Manufacturer:

    Toshiba America Electronic Components

  • YTEOL:

    0

  • Input Trigger Current-Max:

    0.007 A

  • Isolation Voltage-Max:

    2500 V

  • Mounting Feature:

    THROUGH HOLE MOUNT

  • Number of Elements:

    1

  • On-State Current-Max:

    0.15 A

  • On-State Voltage-Max:

    1.45 V

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -25 °C

  • Optoelectronic Device Type:

    SCR OUTPUT OPTOCOUPLER

  • Peak Surge Current:

    2 A

  • Repetitive Peak Off-state Voltage:

    600 V

  • Reverse Leakage Current-Max:

    0.00001 A

  • Surface Mount:

    NO

TLP548J(F) Frequently Asked Questions (FAQs)

  • The recommended operating voltage range for the TLP548J(F) is 4.5V to 5.5V.
  • To ensure reliability in high-temperature applications, it is recommended to follow the derating guidelines provided in the datasheet, and to consider using a heat sink or thermal management system to keep the junction temperature below 150°C.
  • The maximum current rating for the TLP548J(F) is 1.5A, but it is recommended to operate within the recommended operating conditions to ensure reliability and prevent overheating.
  • The TLP548J(F) has built-in ESD protection, but it is still recommended to follow proper ESD handling procedures when handling the device, such as using an anti-static wrist strap and working on an ESD-protected surface.
  • The recommended storage temperature range for the TLP548J(F) is -40°C to 125°C.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

TLP548J(F) Overview

Use the download button to access the TLP548J(F) schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TLP54, or try a keyword search, such as Optocoupler
