TLP548J(TP1,F) footprint, schematic symbol and 3D model by Toshiba

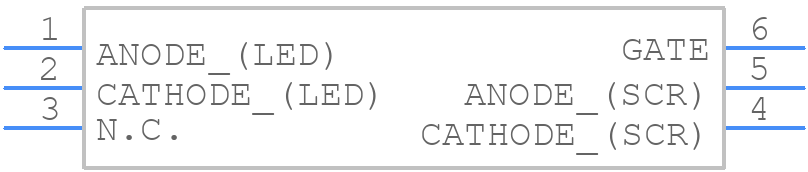

Symbol

PCB Footprints

3D Models

TLP548J(TP1,F) Details

The recommended operating voltage range for the TLP548J is 4.5V to 5.5V.
To ensure reliability in high-temperature applications, it is recommended to follow the derating guidelines provided in the datasheet, and to consider using a heat sink or thermal management system to keep the junction temperature below 150°C.
The maximum current rating for the TLP548J is 1.5A, but it is recommended to operate within the recommended operating conditions to ensure reliability and prevent overheating.
The TLP548J has built-in ESD protection, but it is still recommended to follow proper ESD handling procedures when handling the device, such as using an anti-static wrist strap and working on an ESD-protected surface.
The recommended storage temperature range for the TLP548J is -40°C to 125°C.

Community Provided

System Verified

Community Approved

Use the download button to access the TLP548J(TP1,F) schematic symbol, PCB footprint, and 3D model.

To find more CAD model downloads similar to this part, try a partial part number search, like TLP54, or try a keyword search, such as Optocoupler
