Toshiba recommends a PCB layout with a solid ground plane and a separate power plane for the VCC pin. The input and output pins should be routed away from each other to minimize noise coupling. A minimum of 2-layer PCB is recommended, with the power plane on the top layer and the ground plane on the bottom layer.
To ensure reliable operation of the TLP550 in high-temperature environments, it is recommended to follow proper thermal design guidelines, such as providing adequate heat sinking, using a thermally conductive PCB material, and keeping the device away from heat sources. Additionally, the device should be operated within its recommended operating temperature range of -40°C to 125°C.
The maximum allowable voltage on the input pins of the TLP550 is 7V, which is the absolute maximum rating. However, it is recommended to keep the input voltage below 5.5V to ensure reliable operation and to prevent damage to the device.
Yes, the TLP550 can be used in applications with high-frequency switching, but it is recommended to follow proper layout and design guidelines to minimize noise and ringing. The device has a propagation delay time of 10ns, which makes it suitable for high-frequency applications.
To troubleshoot issues with the TLP550, it is recommended to check the power supply voltage, input signal integrity, and output load conditions. Verify that the device is properly soldered and that there are no shorts or opens on the PCB. Use an oscilloscope to measure the input and output waveforms and verify that they meet the expected specifications.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TLP550 Overview

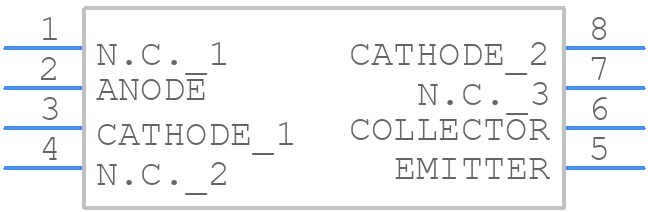

Use the download button to access the TLP550 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TLP55,
or try a keyword search, such as Optocoupler
