TLP552(F) - Toshiba

Description: Toshiba TLP552(F) AC Input Transistor Output Optocoupler, Through Hole, 8-Pin DIP

Download TLP552(F) Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

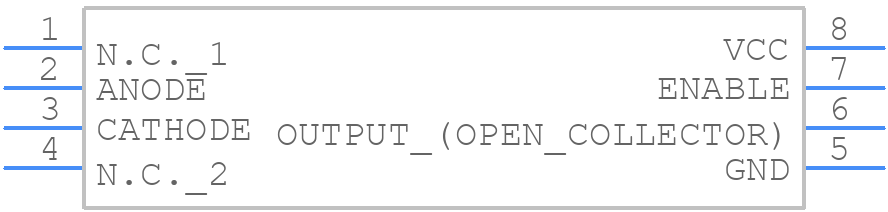

Symbol
TLP552(F) - Toshiba - PCB symbol
click to zoom
PCB Footprints
TLP552(F) - Toshiba PCB footprint - Dual-In-Line Packages - Dual-In-Line Packages - 8-Pin DIP_2020
click to zoom
3D Models
TLP552(F) - Toshiba - 3D model - Dual-In-Line Packages - 8-Pin DIP_2020
click to zoom

TLP552(F) Details

  • Manufacturer Part Number:

    TLP552(F)

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    DIP-8

  • HTS Code:

    8541.40.80.00

  • Manufacturer:

    Toshiba America Electronic Components

  • YTEOL:

    0

  • Additional Feature:

    UL RECOGNIZED

  • Configuration:

    SINGLE

  • Forward Current-Max:

    0.02 A

  • Isolation Voltage-Max:

    2500 V

  • Mounting Feature:

    THROUGH HOLE MOUNT

  • Number of Elements:

    1

  • Number of Functions:

    1

  • On-State Current-Max:

    0.05 A

  • Operating Temperature-Max:

    70 °C

  • Optoelectronic Device Type:

    LOGIC IC OUTPUT OPTOCOUPLER

  • Power Dissipation-Max:

    0.085 W

  • Response Time-Max:

    1.2e-7 s

  • Response Time-Nom:

    6e-8 ns

  • Supply Voltage-Min:

    4.5 V

  • Supply Voltage-Nom:

    5.5 V

  • Surface Mount:

    NO

TLP552(F) Frequently Asked Questions (FAQs)

  • A good PCB layout for the TLP552(F) involves keeping the input and output traces short and separate, using a ground plane, and placing the device close to the power supply. A 4-layer PCB with a dedicated ground plane is recommended.
  • To ensure proper biasing, connect the VCC pin to a stable 5V power supply, and the GND pin to a solid ground plane. The input voltage (VIN) should be within the recommended range of 4.5V to 5.5V.
  • The TLP552(F) can handle a maximum current of 100mA. Exceeding this limit may cause the device to overheat or malfunction.
  • To protect the TLP552(F) from ESD and overvoltage, use a TVS diode or a zener diode on the input lines, and consider adding a series resistor to limit the input current. A fuse or a PTC resettable fuse can also be used to protect against overcurrent.
  • The recommended operating temperature range for the TLP552(F) is -40°C to 85°C. Operating the device outside this range may affect its performance and reliability.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

TLP552(F) Overview

Use the download button to access the TLP552(F) schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TLP55, or try a keyword search, such as Optocoupler
