TLP560G(F) - Toshiba

Description: Optocoupler Triac AC-OUT 1-CH 400V 5-Pin PDIP Magazine

Download TLP560G(F) Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

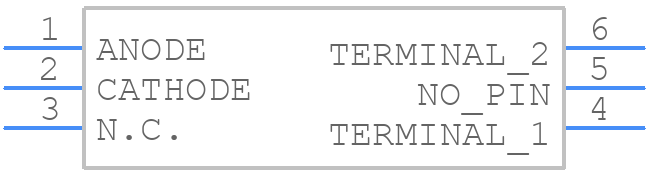

TLP560G(F) - Toshiba - PCB symbol
click to zoom
PCB Footprints
TLP560G(F) - Toshiba PCB footprint - Dual-In-Line Packages - Dual-In-Line Packages - 11-7A9
click to zoom
3D Models
TLP560G(F) - Toshiba - 3D model - Dual-In-Line Packages - 11-7A9
click to zoom

TLP560G(F) Details

  • Manufacturer Part Number:

    TLP560G(F)

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • HTS Code:

    8541.40.80.00

  • Manufacturer:

    Toshiba America Electronic Components

  • YTEOL:

    0

  • Input Trigger Current-Max:

    0.01 A

  • Isolation Voltage-Max:

    2500 V

  • Mounting Feature:

    THROUGH HOLE MOUNT

  • Number of Elements:

    1

  • On-State Current-Max:

    0.1 A

  • On-State Voltage-Max:

    3 V

  • Operating Temperature-Max:

    100 °C

  • Operating Temperature-Min:

    -40 °C

  • Optoelectronic Device Type:

    TRIAC OUTPUT OPTOCOUPLER

  • Peak Surge Current:

    1.2 A

  • Repetitive Peak Off-state Voltage:

    400 V

  • Reverse Leakage Current-Max:

    0.00001 A

  • Surface Mount:

    NO

TLP560G(F) Frequently Asked Questions (FAQs)

  • The recommended operating voltage range for the TLP560G(F) is 4.5V to 5.5V.
  • To ensure proper biasing, connect the VCC pin to a stable 5V power supply, and connect the GND pin to a solid ground plane. Also, ensure that the input signals are within the recommended voltage range.
  • The TLP560G(F) can sink or source up to 50mA of current per channel.
  • To manage thermal issues, ensure good airflow around the device, and consider using a heat sink or thermal pad if the device is expected to operate at high temperatures or high currents.
  • Yes, the TLP560G(F) is compatible with 3.3V logic, but it requires an external voltage regulator to step down the voltage to 3.3V.
