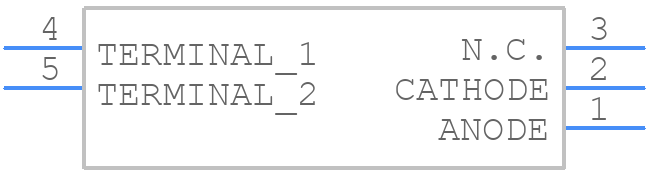

TLP561J - Toshiba

TLP561J Details

• Manufacturer Part Number:

  TLP561J

• Rohs Code:

  Yes

• Part Life Cycle Code:

  End Of Life

• Package Description:

  DIP-6

• HTS Code:

  8541.40.80.00

• Manufacturer:

  Toshiba America Electronic Components

• YTEOL:

  0.4

• Additional Feature:

  UL RECOGNIZED

• Configuration:

  SINGLE

• Forward Current-Max:

  0.025 A

• Input Trigger Current-Max:

  0.01 A

• Input Trigger Current-Nom:

  5 mA

• Isolation Voltage-Max:

  2500 V

• Mounting Feature:

  THROUGH HOLE MOUNT

• Number of Elements:

  1

• On-State Current-Max:

  0.1 A

• Operating Temperature-Max:

  85 °C

• Operating Temperature-Min:

  -25 °C

• Optoelectronic Device Type:

  TRIAC OUTPUT OPTOCOUPLER WITH ZERO CRSVR

• Peak Off-state Voltage-Min:

  600 V

• Peak Surge Current:

  1.2 A

• Repetitive Peak Off-state Voltage:

  600 V

• Reverse Leakage Current-Max:

  0.00001 A

• Surface Mount:

  NO
