A good PCB layout for the TLP5702 involves placing the device close to the load, using short and wide traces for the output, and separating the input and output sections to minimize noise coupling. A solid ground plane and decoupling capacitors are also recommended.
To ensure reliability in high-temperature applications, it's essential to follow the recommended operating conditions, provide adequate heat sinking, and consider derating the device's output current and voltage according to the temperature derating curve provided in the datasheet.
To minimize EMI and RFI, use a shielded cable for the output, keep the device away from sensitive circuits, and consider adding EMI filters or ferrite beads to the output. Additionally, follow good PCB layout practices, such as separating the input and output sections and using a solid ground plane.
Yes, the TLP5702 can be used in a redundant or parallel configuration to increase the output current. However, it's essential to ensure that the devices are properly synchronized and that the output currents are balanced to prevent uneven current sharing.
The TLP5702 has built-in overcurrent protection, but it's still essential to consider external protection measures, such as fuses or circuit breakers, to prevent damage from overvoltage or overcurrent conditions. Additionally, ensure that the device is operated within its recommended specifications to prevent overheating or damage.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TLP5702(TP,E Overview

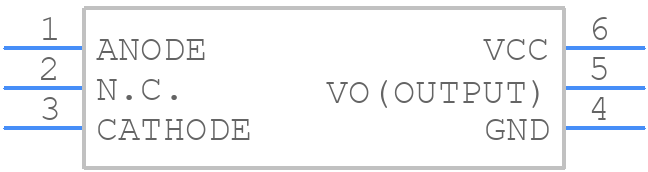

Use the download button to access the TLP5702(TP,E schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TLP57,
or try a keyword search, such as Optocoupler
