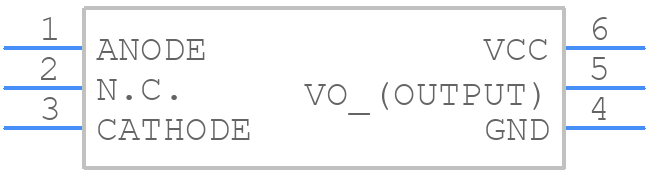

TLP5752(TP,E - Toshiba

TLP5752(TP,E Frequently Asked Questions (FAQs)

• What is the recommended PCB layout for optimal thermal performance?
  A thermal pad on the bottom of the package should be connected to a large copper area on the PCB to dissipate heat efficiently. A minimum of 2oz copper thickness is recommended.
• How do I ensure reliable operation in high-temperature environments?
  Ensure that the device is operated within the recommended junction temperature range (TJ) of -40°C to 150°C. Implement proper thermal management, such as heat sinks or thermal interfaces, to maintain a safe operating temperature.
• What is the maximum allowable voltage on the input pins?
  The maximum allowable voltage on the input pins is 5.5V, which is the absolute maximum rating. Operating the device above this voltage may cause permanent damage.
• Can I use the TLP5752(TP,E) in a high-frequency switching application?
  Yes, the TLP5752(TP,E) is suitable for high-frequency switching applications up to 100 kHz. However, ensure that the device is properly bypassed and decoupled to minimize electromagnetic interference (EMI).
• How do I protect the device from electrostatic discharge (ESD)?
  Handle the device with anti-static precautions, such as using an anti-static wrist strap or mat. Ensure that the PCB is designed with ESD protection in mind, including the use of ESD protection diodes or resistors.
