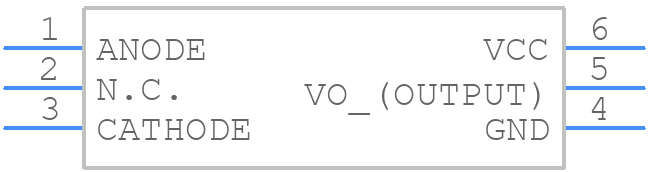

TLP5754(D4,E - Toshiba

TLP5754(D4,E Frequently Asked Questions (FAQs)

• What is the recommended PCB layout for optimal thermal performance?
  A thermal pad is recommended under the IC to improve heat dissipation. A 2-layer PCB with a solid ground plane on the bottom layer and a small thermal relief pattern on the top layer is recommended.
• How do I ensure reliable operation in high-temperature environments?
  Ensure proper heat sinking, use a thermal interface material, and follow the recommended PCB layout. Also, consider derating the device's power dissipation according to the ambient temperature.
• What is the maximum allowable voltage on the input pins?
  The maximum allowable voltage on the input pins is 5.5V, which is the absolute maximum rating. However, for reliable operation, it is recommended to keep the input voltage below 5V.
• Can I use the TLP5754 as a level shifter?
  Yes, the TLP5754 can be used as a level shifter. However, the output voltage will be limited to the VCC supply voltage, and the output current will be limited to the device's current rating.
• How do I handle ESD protection for the TLP5754?
  The TLP5754 has built-in ESD protection, but it is still recommended to follow proper ESD handling procedures during assembly and testing. Use an ESD wrist strap or mat, and ensure that the device is handled in a static-safe environment.
