TLP5772(TP,E - Toshiba

Description: Logic Output Optocouplers Gate Drive Coupler 10V 2.5A

Download TLP5772(TP,E Model

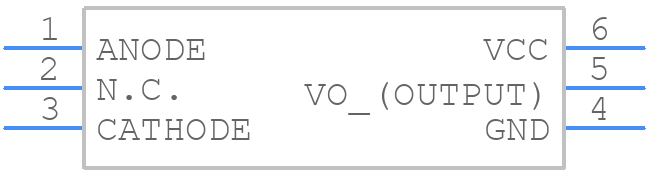

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
TLP5772(TP,E - Toshiba PCB footprint - Small Outline Packages - Small Outline Packages - 11-4N101A
click to zoom
3D Models
TLP5772(TP,E - Toshiba  - 3D model - Small Outline Packages - 11-4N101A
click to zoom

TLP5772(TP,E Details

  • Manufacturer Part Number:

    TLP5772(TP,E

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    SOP-6

  • Country Of Origin:

    Thailand

  • HTS Code:

    8541.40.80.00

  • Factory Lead Time:

    14 Weeks

  • Date Of Intro:

    2016-06-13

  • Manufacturer:

    Toshiba America Electronic Components

  • YTEOL:

    9

  • Additional Feature:

    OPEN COLLECTOR, UL RECOGNIZED

  • Configuration:

    SINGLE

  • Forward Current-Max:

    0.008 A

  • Isolation Voltage-Max:

    5000 V

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Elements:

    1

  • Number of Functions:

    1

  • Operating Temperature-Max:

    110 °C

  • Operating Temperature-Min:

    -40 °C

  • Optoelectronic Device Type:

    LOGIC IC OUTPUT OPTOCOUPLER

  • Packing Method:

    TR

  • Response Time-Nom:

    1.5e-8 ns

  • Supply Voltage-Min:

    10 V

  • Surface Mount:

    YES

TLP5772(TP,E Frequently Asked Questions (FAQs)

  • A good PCB layout for the TLP5772 involves keeping the input and output traces short and separate, using a solid ground plane, and placing the device close to the power source. Additionally, it's recommended to use a 10uF capacitor between VCC and GND pins to filter out noise.
  • To ensure proper power-on and power-off sequencing, it's recommended to apply power to the VCC pin first, followed by the input signal. When powering off, remove the input signal first, then the VCC power. This helps prevent damage to the device.
  • The maximum allowable voltage on the input pins of the TLP5772 is 5.5V. Exceeding this voltage can cause damage to the device.
  • The TLP5772 is rated for operation up to 125°C. However, it's recommended to derate the device's performance at high temperatures to ensure reliable operation. Consult the datasheet for specific derating guidelines.
  • To troubleshoot issues with the TLP5772, start by verifying the power supply voltage, checking for proper input signal levels, and ensuring the device is properly soldered to the PCB. If issues persist, consult the datasheet and application notes for guidance.
