TLP5774 - Toshiba

Description: Photocoupler (photo-IC output), IGBT driver, IOP=+/-4.0 A, 5000 Vrms, SO6L

Download TLP5774 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

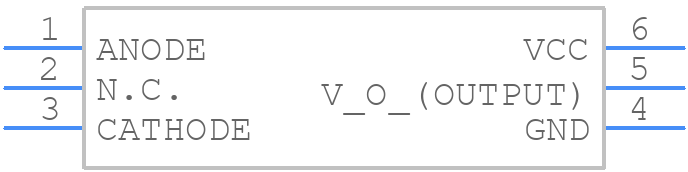

Symbol
TLP5774 - Toshiba - PCB symbol
click to zoom
PCB Footprints
TLP5774 - Toshiba PCB footprint - Small Outline Packages - Small Outline Packages - 11-4N1A
click to zoom
3D Models
TLP5774 - Toshiba - 3D model - Small Outline Packages - 11-4N1A
click to zoom

TLP5774 Details

  • Manufacturer Part Number:

    TLP5774

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    SOP-6

  • HTS Code:

    8541.40.80.00

  • Date Of Intro:

    2016-06-13

  • Manufacturer:

    Toshiba America Electronic Components

  • YTEOL:

    9

  • Additional Feature:

    OPEN COLLECTOR, UL RECOGNIZED

  • Configuration:

    SINGLE

  • Forward Current-Max:

    0.008 A

  • Isolation Voltage-Max:

    5000 V

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Elements:

    1

  • Number of Functions:

    1

  • Operating Temperature-Max:

    110 °C

  • Operating Temperature-Min:

    -40 °C

  • Optoelectronic Device Type:

    LOGIC IC OUTPUT OPTOCOUPLER

  • Response Time-Nom:

    1.5e-8 ns

  • Supply Voltage-Min:

    10 V

  • Surface Mount:

    YES

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

TLP5774 Overview

Use the download button to access the TLP5774 schematic symbol, PCB footprint, and 3D model.
