TLP592A(F) - Toshiba

Description: MOSFET Output Optocouplers Photorelay Voff=60V Ion=0.5/0.4A

Download TLP592A(F) Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

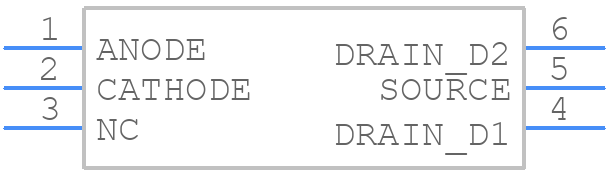

Symbol
TLP592A(F) - Toshiba - PCB symbol
click to zoom
PCB Footprints
TLP592A(F) - Toshiba PCB footprint - Dual-In-Line Packages - Dual-In-Line Packages - 11−7A8
click to zoom
3D Models
TLP592A(F) - Toshiba - 3D model - Dual-In-Line Packages - 11−7A8
click to zoom

TLP592A(F) Details

  • Manufacturer Part Number:

    TLP592A(F)

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • HTS Code:

    8541.40.95.00

  • Manufacturer:

    Toshiba America Electronic Components

  • YTEOL:

    0

  • Forward Current-Max:

    0.05 A

  • Isolation Voltage-Max:

    2500 V

  • Mounting Feature:

    THROUGH HOLE MOUNT

  • Number of Elements:

    1

  • Operating Temperature-Max:

    65 °C

  • Operating Temperature-Min:

    -20 °C

  • Optoelectronic Device Type:

    TRANSISTOR OUTPUT SSR

  • Surface Mount:

    NO

TLP592A(F) Frequently Asked Questions (FAQs)

  • The recommended operating voltage range for the TLP592A(F) is 4.5V to 5.5V.
  • To ensure the TLP592A(F) is properly powered on, make sure to connect the VCC pin to a stable 5V power supply and the GND pin to a reliable ground connection.
  • The maximum current rating for the TLP592A(F) is 50mA per channel.
  • To handle thermal considerations, ensure good heat dissipation by providing a heat sink or a thermal pad, and avoid operating the device at high temperatures (above 85°C) for extended periods.
  • For optimal performance, use a 4-layer PCB with a solid ground plane, and keep the signal traces short and away from noise sources.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

TLP592A(F) Overview

Use the download button to access the TLP592A(F) schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TLP59, or try a keyword search, such as Solid State Relays
