TLP598GA(F) - Toshiba

Description: Toshiba TLP598GA(F) DC Input MOSFET Output Dual Optocoupler, Through Hole, 6-Pin DIP

Download TLP598GA(F) Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

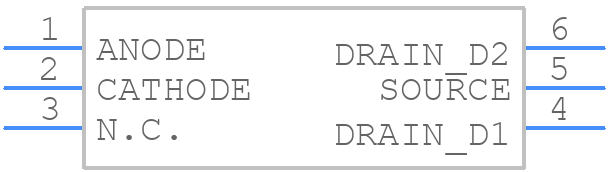

TLP598GA(F) - Toshiba - PCB symbol
click to zoom
PCB Footprints
TLP598GA(F) - Toshiba PCB footprint - Dual-In-Line Packages - Dual-In-Line Packages - PDIP-6
click to zoom
3D Models
TLP598GA(F) - Toshiba - 3D model - Dual-In-Line Packages - PDIP-6
click to zoom

TLP598GA(F) Details

  • Manufacturer Part Number:

    TLP598GA(F)

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • HTS Code:

    8541.40.95.00

  • Manufacturer:

    Toshiba America Electronic Components

  • YTEOL:

    0

  • Forward Current-Max:

    0.03 A

  • Isolation Voltage-Max:

    2500 V

  • Mounting Feature:

    THROUGH HOLE MOUNT

  • Number of Elements:

    1

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Optoelectronic Device Type:

    TRANSISTOR OUTPUT SSR

  • Surface Mount:

    NO

TLP598GA(F) Frequently Asked Questions (FAQs)

  • The recommended operating voltage range for the TLP598GA(F) is 4.5V to 5.5V.
  • To ensure reliability in high-temperature environments, it is recommended to follow the derating guidelines provided in the datasheet, and to consider using a heat sink or thermal management system to keep the junction temperature below 125°C.
  • The maximum current rating for the TLP598GA(F) is 1.5A per channel, with a total current rating of 3A for all channels combined.
  • To protect the TLP598GA(F) from ESD, it is recommended to follow proper handling and storage procedures, such as using anti-static bags or trays, and to implement ESD protection circuits in the system design.
  • The typical propagation delay time for the TLP598GA(F) is 10ns, with a maximum delay time of 20ns.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

TLP598GA(F) Overview

Use the download button to access the TLP598GA(F) schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TLP59, or try a keyword search, such as Solid State Relays
