TLP620-2(F) footprint, schematic symbol and 3D model by Toshiba

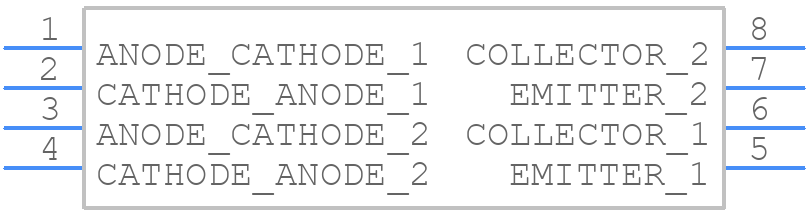

Symbol

PCB Footprints

3D Models

TLP620-2(F) Details

The recommended operating voltage range for the TLP620-2(F) is 3.3V to 5V.
To ensure proper biasing, connect the VCC pin to a stable voltage source, and decouple it with a 0.1uF capacitor to ground. Also, ensure the input voltage is within the recommended range.
The maximum current rating for the TLP620-2(F) is 50mA per channel.
To ensure ESD protection, use a TVS diode or a transient voltage suppressor in parallel with the input pins to protect against electrostatic discharge.
The propagation delay for the TLP620-2(F) is typically around 10ns, but it can vary depending on the operating conditions and load capacitance.

Community Provided

System Verified

Community Approved

Use the download button to access the TLP620-2(F) schematic symbol, PCB footprint, and 3D model.

To find more CAD model downloads similar to this part, try a partial part number search, like TLP62, or try a keyword search, such as Optocoupler
