TLP620-4(F) - Toshiba

Description: Opto-isolator,5000Vac DIP16,TLP620-4(F) Toshiba TLP620-4(F) AC Input Transistor Output Quad Optocoupler, Through Hole, 16-Pin PDIP

Download TLP620-4(F) Model

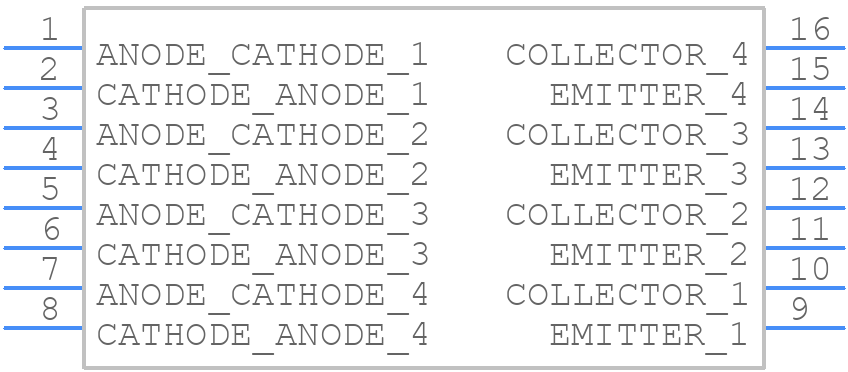

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints

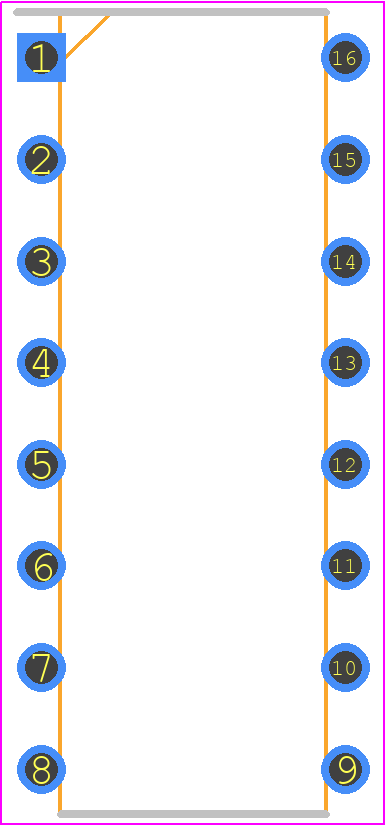

TLP620-4(F) - Toshiba PCB footprint - Dual-In-Line Packages - Dual-In-Line Packages - 11-20A3
click to zoom
3D Models
TLP620-4(F) - Toshiba  - 3D model - Dual-In-Line Packages - 11-20A3
click to zoom

TLP620-4(F) Details

  • Manufacturer Part Number:

    TLP620-4(F)

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    PLASTIC, 11-20A3, DIP-16

  • HTS Code:

    8541.40.80.00

  • Manufacturer:

    Toshiba America Electronic Components

  • YTEOL:

    0

  • Additional Feature:

    UL RECOGNIZED

  • Coll-Emtr Bkdn Voltage-Min:

    55 V

  • Configuration:

    SEPARATE, 4 CHANNELS

  • Current Transfer Ratio-Min:

    50%

  • Dark Current-Max:

    100 nA

  • Forward Current-Max:

    0.05 A

  • Forward Voltage-Max:

    1.3 V

  • Isolation Voltage-Max:

    5000 V

  • Mounting Feature:

    THROUGH HOLE MOUNT

  • Number of Elements:

    4

  • On-State Current-Max:

    0.05 A

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -25 °C

  • Optoelectronic Device Type:

    AC INPUT-TRANSISTOR OUTPUT OPTOCOUPLER

  • Power Dissipation-Max:

    0.15 W

  • Response Time-Max:

    0.000002 s

  • Surface Mount:

    NO

TLP620-4(F) Frequently Asked Questions (FAQs)

  • The recommended operating voltage range for the TLP620-4(F) is 3.0 to 5.5 volts.
  • To ensure proper biasing, connect the VCC pin to a stable voltage source, and ensure the input voltage (VIN) is within the recommended operating range. Also, decouple the VCC pin with a 0.1uF capacitor to reduce noise.
  • The maximum current rating for the TLP620-4(F) is 50mA per channel.
  • To ensure ESD protection, handle the device by the body or use an anti-static wrist strap. Also, use ESD-protected equipment and follow proper ESD handling procedures.
  • The maximum operating temperature range for the TLP620-4(F) is -40°C to 85°C.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

TLP620-4(F) Overview

Use the download button to access the TLP620-4(F) schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TLP62, or try a keyword search, such as Optocoupler
