TLP620-4(GB,F) - Toshiba

Description: Toshiba, TLP620-4(GB,F) AC Input Transistor Output Quad Optocoupler, Through Hole, 16-Pin PDIP

Download TLP620-4(GB,F) Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

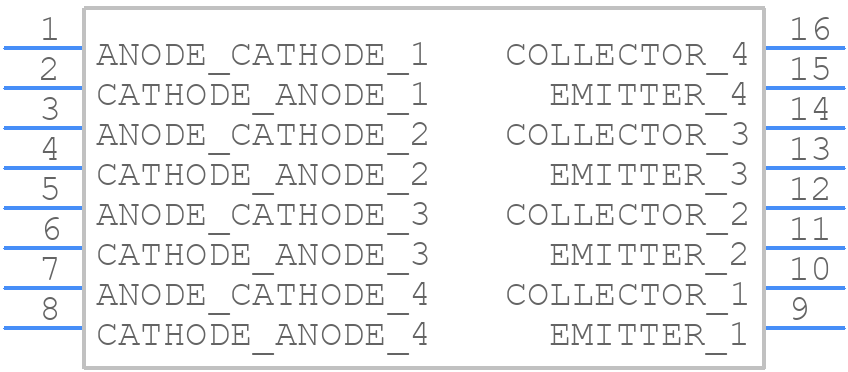

TLP620-4(GB,F) - Toshiba - PCB symbol
click to zoom
PCB Footprints

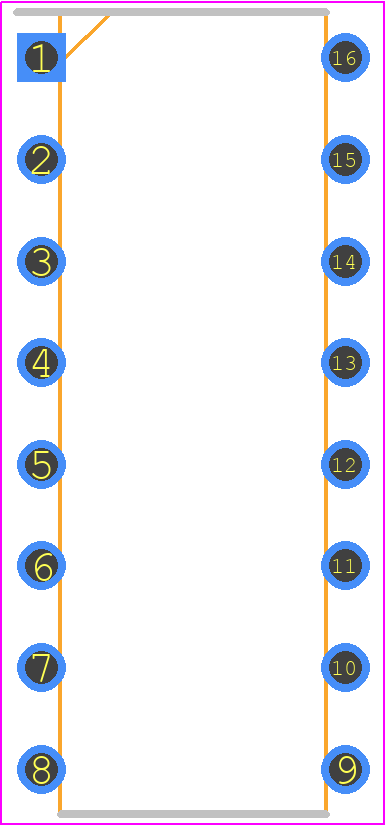

TLP620-4(GB,F) - Toshiba PCB footprint - Dual-In-Line Packages - Dual-In-Line Packages - 11-20A3
click to zoom
3D Models
TLP620-4(GB,F) - Toshiba - 3D model - Dual-In-Line Packages - 11-20A3
click to zoom

TLP620-4(GB,F) Details

  • Manufacturer Part Number:

    TLP620-4(GB,F)

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • HTS Code:

    8541.40.80.00

  • Manufacturer:

    Toshiba America Electronic Components

  • YTEOL:

    0

  • Additional Feature:

    UL RECOGNIZED

  • Coll-Emtr Bkdn Voltage-Min:

    55 V

  • Configuration:

    SEPARATE, 4 CHANNELS

  • Current Transfer Ratio-Min:

    100%

  • Dark Current-Max:

    100 nA

  • Forward Current-Max:

    0.05 A

  • Forward Voltage-Max:

    1.3 V

  • Isolation Voltage-Max:

    5000 V

  • Mounting Feature:

    THROUGH HOLE MOUNT

  • Number of Elements:

    4

  • On-State Current-Max:

    0.05 A

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -25 °C

  • Optoelectronic Device Type:

    AC INPUT-TRANSISTOR OUTPUT OPTOCOUPLER

  • Power Dissipation-Max:

    0.15 W

  • Response Time-Max:

    0.000002 s

  • Surface Mount:

    NO

TLP620-4(GB,F) Frequently Asked Questions (FAQs)

  • The recommended operating temperature range for the TLP620-4 is -40°C to 125°C.
  • To ensure reliability in high-temperature applications, it is recommended to derate the device's power dissipation according to the temperature derating curve provided in the datasheet.
  • The maximum allowable voltage for the TLP620-4 is 600V, but it is recommended to operate the device within the specified voltage range to ensure reliable operation.
  • To protect the TLP620-4 from ESD, it is recommended to handle the device in an ESD-controlled environment, use ESD-protective packaging, and follow proper handling and storage procedures.
  • Yes, the TLP620-4 can be used in high-frequency applications up to 100 kHz, but it is recommended to evaluate the device's performance in the specific application to ensure reliable operation.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

TLP620-4(GB,F) Overview

Use the download button to access the TLP620-4(GB,F) schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TLP62, or try a keyword search, such as Optocoupler
