TLP620-4(GB) - Toshiba

Description: TOSHIBA - TLP620-4(GB) - Optocoupler, Transistor Output, 4 Channel, DIP, 16 Pins, 50 mA, 5 kV, 100 %

Download TLP620-4(GB) Model
Schematic

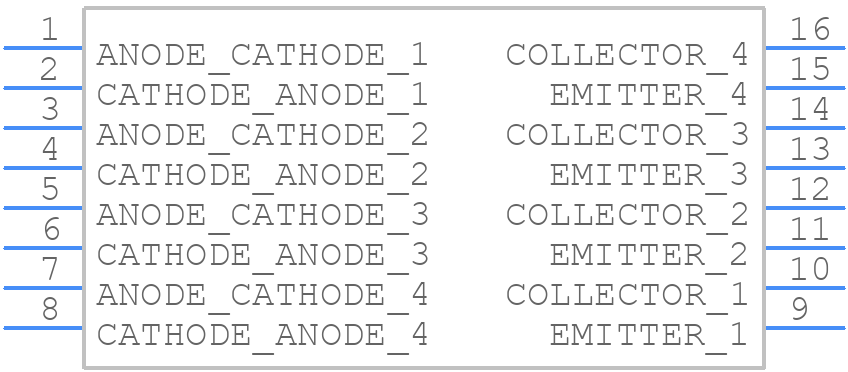

symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints

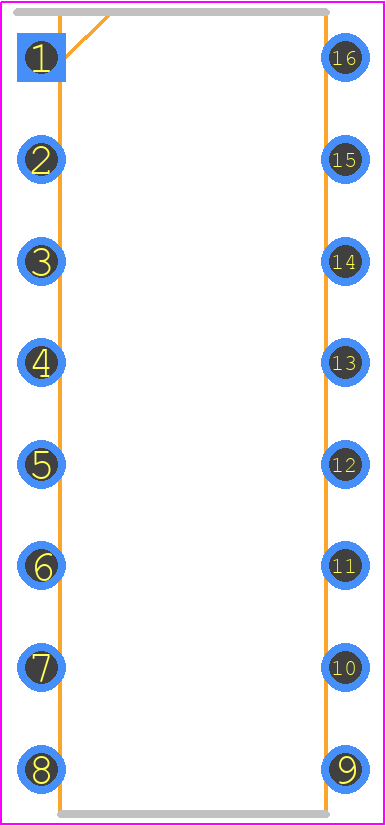

TLP620-4(GB) - Toshiba PCB footprint - Dual-In-Line Packages - Dual-In-Line Packages - 11-20A3
click to zoom
3D Models
TLP620-4(GB) - Toshiba  - 3D model - Dual-In-Line Packages - 11-20A3
click to zoom

TLP620-4(GB) Details

  • Manufacturer Part Number:

    TLP620-4(GB)

  • Rohs Code:

    No

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    DIP-16

  • Reach Compliance Code:

    Unknown

  • HTS Code:

    8541.40.80.00

  • Manufacturer:

    Toshiba America Electronic Components

  • YTEOL:

    0

  • Additional Feature:

    UL RECOGNIZED

  • Coll-Emtr Bkdn Voltage-Min:

    55 V

  • Configuration:

    SEPARATE, 4 CHANNELS

  • Current Transfer Ratio-Min:

    100%

  • Dark Current-Max:

    100 nA

  • Forward Current-Max:

    0.05 A

  • Forward Voltage-Max:

    1.3 V

  • Isolation Voltage-Max:

    5000 V

  • Mounting Feature:

    THROUGH HOLE MOUNT

  • Number of Elements:

    4

  • On-State Current-Max:

    0.05 A

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -25 °C

  • Optoelectronic Device Type:

    AC INPUT-TRANSISTOR OUTPUT OPTOCOUPLER

  • Power Dissipation-Max:

    0.1 W

  • Response Time-Max:

    0.000002 s

  • Surface Mount:

    NO

TLP620-4(GB) Frequently Asked Questions (FAQs)

  • The recommended operating temperature range for the TLP620-4(GB) is -40°C to 125°C.
  • To ensure reliability in high-temperature applications, it is recommended to follow proper thermal design and layout guidelines, and to consider derating the device's power dissipation according to the ambient temperature.
  • The maximum allowable power dissipation for the TLP620-4(GB) is 1.5 W at an ambient temperature of 25°C, and it decreases as the ambient temperature increases.
  • During soldering and assembly, it is recommended to follow proper handling and storage procedures to prevent damage from electrostatic discharge, moisture, and mechanical stress.
  • The recommended storage conditions for the TLP620-4(GB) are in a dry, cool place, away from direct sunlight and moisture, and in its original packaging or an anti-static bag.
