TLP621(GB,F,T) - Toshiba

Description: Transistor Output Optocouplers 55Vceo 5000Vrms

Download TLP621(GB,F,T) Model

Schematic
symbols

PCB
footprints

3D
models

Alert me if there are changes to this TLP621(GB,F,T) model

Email notifications will be applied after download.

Send part feedback

Symbol

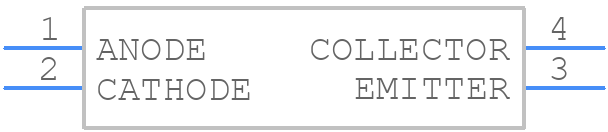

TLP621(GB,F,T) - Toshiba - PCB symbol

PCB Footprints

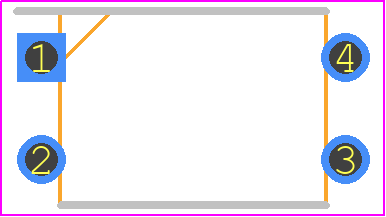

TLP621(GB,F,T) - Toshiba PCB footprint - Dual-In-Line Packages - Dual-In-Line Packages - 11−5B2

3D Models

TLP621(GB,F,T) - Toshiba - 3D model - Dual-In-Line Packages - 11−5B2

Datasheet Download Datasheet
Stock & Prices Price & Stock for TLP621(GB,F,T)
Part Number TLP621(GB,F,T)
Manufacturer Toshiba
Pin Count 4
Part Category Phototransistor
Package Category Dual-In-Line Packages
Footprint Name Dual-In-Line Packages - 11−5B2
Released Date Apr 15, 2022
Last Modified Date Mar 7, 2023 4:10 PM UTC
Pinout / Pin List Click Here (Member Only)

TLP621(GB,F,T) Details

Manufacturer Part Number:
TLP621(GB,F,T)
Part Life Cycle Code:
Obsolete
Package Description:
DIP-4
HTS Code:
8541.40.80.00
Manufacturer:
Toshiba America Electronic Components
YTEOL:
0
Additional Feature:
UL RECOGNIZED
Coll-Emtr Bkdn Voltage-Min:
55 V
Configuration:
SINGLE
Current Transfer Ratio-Min:
100%
Dark Current-Max:
100 nA
Forward Current-Max:
0.06 A
Forward Voltage-Max:
1.3 V
Isolation Voltage-Max:
5000 V
Mounting Feature:
THROUGH HOLE MOUNT
Number of Elements:
1
On-State Current-Max:
0.05 A
Operating Temperature-Max:
100 °C
Operating Temperature-Min:
-55 °C
Optoelectronic Device Type:
TRANSISTOR OUTPUT OPTOCOUPLER
Power Dissipation-Max:
0.15 W
Response Time-Max:
0.000002 s
Surface Mount:
NO

TLP621(GB,F,T) Frequently Asked Questions (FAQs)

The recommended operating voltage range for the TLP621 is 4.5V to 30V.
To ensure proper biasing, connect the input pin (IN) to a voltage source through a resistor (RIN) and a capacitor (CIN) in series. The recommended values are RIN = 1 kΩ and CIN = 10 nF.
The maximum current that the TLP621 can handle is 1.5A.
To protect the TLP621 from overvoltage and overcurrent, use a voltage regulator and a current limiter in the power supply circuit.
The typical rise and fall time of the TLP621 is 10 ns and 15 ns, respectively.
