TLP624-2(F) - Toshiba

Description: Transistor Output Optocouplers 55Vceo 5000Vrms 2 Channels

Download TLP624-2(F) Model

Schematic
symbols

PCB
footprints

3D
models

Alert me if there are changes to this TLP624-2(F) model

Email notifications will be applied after download.

Send part feedback

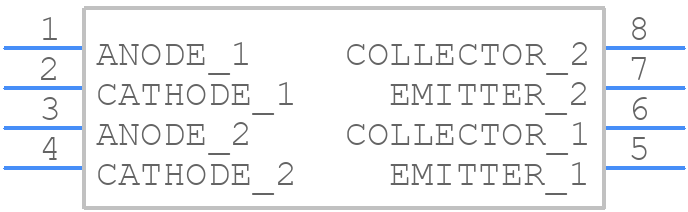

Symbol

TLP624-2(F) - Toshiba - PCB symbol

PCB Footprints

TLP624-2(F) - Toshiba PCB footprint - Dual-In-Line Packages - Dual-In-Line Packages - 11-10C4 (8PDIP)

3D Models

TLP624-2(F) - Toshiba - 3D model - Dual-In-Line Packages - 11-10C4 (8PDIP)

Datasheet Download Datasheet
Stock & Prices Price & Stock for TLP624-2(F)
Part Number TLP624-2(F)
Manufacturer Toshiba
Pin Count 8
Part Category Integrated Circuit
Package Category Dual-In-Line Packages
Footprint Name Dual-In-Line Packages - 11-10C4 (8PDIP)
Released Date Apr 12, 2022
Last Modified Date Mar 7, 2023 4:10 PM UTC
Pinout / Pin List Click Here (Member Only)

TLP624-2(F) Details

Manufacturer Part Number:
TLP624-2(F)
Rohs Code:
Yes
Part Life Cycle Code:
Obsolete
HTS Code:
8541.40.80.00
Manufacturer:
Toshiba America Electronic Components
YTEOL:
0
Additional Feature:
UL RECOGNIZED
Coll-Emtr Bkdn Voltage-Min:
55 V
Configuration:
SEPARATE, 2 CHANNELS
Current Transfer Ratio-Min:
50%
Dark Current-Max:
100 nA
Forward Current-Max:
0.02 A
Forward Voltage-Max:
1.3 V
Isolation Voltage-Max:
5000 V
Mounting Feature:
THROUGH HOLE MOUNT
Number of Elements:
2
On-State Current-Max:
0.05 A
Operating Temperature-Max:
100 °C
Operating Temperature-Min:
-55 °C
Optoelectronic Device Type:
TRANSISTOR OUTPUT OPTOCOUPLER
Power Dissipation-Max:
0.15 W
Response Time-Max:
0.000008 s
Surface Mount:
NO

TLP624-2(F) Frequently Asked Questions (FAQs)

The recommended operating voltage range for the TLP624-2(F) is 3.3V to 5V.
To ensure proper biasing, connect the VCC pin to a stable voltage source, and decouple it with a 0.1uF capacitor to ground. Also, ensure the input voltage is within the recommended operating range.
The maximum current rating for the TLP624-2(F) is 50mA per channel.
The TLP624-2(F) has built-in ESD protection, but it's still recommended to follow proper ESD handling procedures when handling the device, such as using an ESD wrist strap or mat.
The typical propagation delay for the TLP624-2(F) is 10ns.

Trust Checks

Community Provided

System Verified

Community Approved

TLP624-2(F) Overview

Use the download button to access the TLP624-2(F) schematic symbol, PCB footprint, and 3D model.

To find more CAD model downloads similar to this part, try a partial part number search, like TLP62, or try a keyword search, such as Optocoupler
