Part Image

TLP624-4(F) - Toshiba

Description: Transistor Output Optocouplers 55Vceo 5000Vrms 4 channels

Download TLP624-4(F) Model

Schematic
symbols

PCB
footprints

3D
models

Alert me if there are changes to this TLP624-4(F) model

Email notifications will be applied after download.

Send part feedback

Symbol

TLP624-4(F) - Toshiba - PCB symbol

PCB Footprints

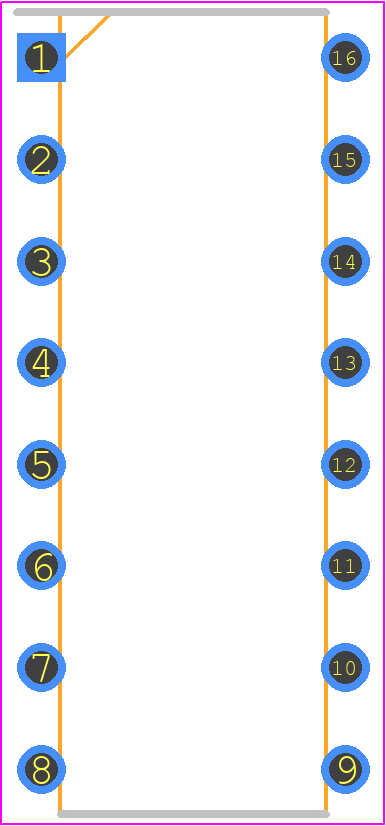

TLP624-4(F) - Toshiba PCB footprint - Dual-In-Line Packages - Dual-In-Line Packages - 11-20A3

3D Models

TLP624-4(F) - Toshiba - 3D model - Dual-In-Line Packages - 11-20A3

Datasheet Download Datasheet
Stock & Prices Price & Stock for TLP624-4(F)
Part Number TLP624-4(F)
Manufacturer Toshiba
Pin Count 16
Part Category Integrated Circuit
Package Category Dual-In-Line Packages
Footprint Name Dual-In-Line Packages - 11-20A3
Released Date Apr 12, 2022
Last Modified Date Mar 7, 2023 4:10 PM UTC
Pinout / Pin List Click Here (Member Only)

TLP624-4(F) Details

Manufacturer Part Number:
TLP624-4(F)
Rohs Code:
Yes
Part Life Cycle Code:
Obsolete
Package Description:
LEAD FREE, PLASTIC, 11-20A3, DIP-16
HTS Code:
8541.40.80.00
Manufacturer:
Toshiba America Electronic Components
YTEOL:
0
Additional Feature:
UL RECOGNIZED
Coll-Emtr Bkdn Voltage-Min:
55 V
Configuration:
SEPARATE, 4 CHANNELS
Current Transfer Ratio-Min:
100%
Dark Current-Max:
100 nA
Forward Current-Max:
0.02 A
Forward Voltage-Max:
1.3 V
Isolation Voltage-Max:
5000 V
Mounting Feature:
THROUGH HOLE MOUNT
Number of Elements:
4
On-State Current-Max:
0.05 A
Operating Temperature-Max:
75 °C
Operating Temperature-Min:
-25 °C
Optoelectronic Device Type:
TRANSISTOR OUTPUT OPTOCOUPLER
Power Dissipation-Max:
0.15 W
Response Time-Max:
0.000008 s
Surface Mount:
NO

TLP624-4(F) Frequently Asked Questions (FAQs)

The recommended operating voltage range for the TLP624-4(F) is 3.3V to 5V.
To ensure proper biasing, connect the VCC pin to a stable voltage source, and decouple it with a 0.1uF capacitor to ground. Also, ensure the input voltage is within the recommended range.
The TLP624-4(F) can sink or source up to 50mA of current per channel.
Use ESD protection devices, such as TVS diodes, and ensure the input voltage does not exceed the maximum rating of 6V. Also, use a voltage regulator to regulate the supply voltage.
The propagation delay of the TLP624-4(F) is typically around 10ns, but it can vary depending on the operating conditions and load capacitance.

Trust Checks

Community Provided

System Verified

Community Approved

TLP624-4(F) Overview

Use the download button to access the TLP624-4(F) schematic symbol, PCB footprint, and 3D model.

To find more CAD model downloads similar to this part, try a partial part number search, like TLP62, or try a keyword search, such as Optocoupler
