TLP624-4 - Toshiba

Description: TLP624-4 transistor opto isolator, dip16

Download TLP624-4 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints

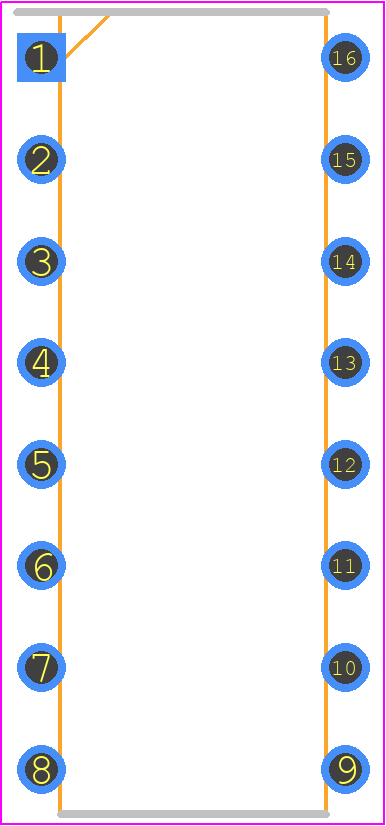

TLP624-4 - Toshiba PCB footprint - Dual-In-Line Packages - Dual-In-Line Packages - DIP16TLP521-4(A)
click to zoom
3D Models
TLP624-4 - Toshiba  - 3D model - Dual-In-Line Packages - DIP16TLP521-4(A)
click to zoom

TLP624-4 Details

  • Manufacturer Part Number:

    TLP624-4

  • Part Life Cycle Code:

    End Of Life

  • Package Description:

    PLASTIC, DIP-16

  • HTS Code:

    8541.40.80.00

  • Date Of Intro:

    1991-04-23

  • Manufacturer:

    Toshiba America Electronic Components

  • YTEOL:

    0.4

  • Additional Feature:

    UL RECOGNIZED

  • Coll-Emtr Bkdn Voltage-Min:

    55 V

  • Configuration:

    SEPARATE, 4 CHANNELS

  • Current Transfer Ratio-Min:

    100%

  • Dark Current-Max:

    100 nA

  • Forward Current-Max:

    0.02 A

  • Forward Voltage-Max:

    1.3 V

  • Isolation Voltage-Max:

    5000 V

  • Mounting Feature:

    THROUGH HOLE MOUNT

  • Number of Elements:

    4

  • On-State Current-Max:

    0.05 A

  • Operating Temperature-Max:

    75 °C

  • Operating Temperature-Min:

    -25 °C

  • Optoelectronic Device Type:

    TRANSISTOR OUTPUT OPTOCOUPLER

  • Power Dissipation-Max:

    0.2 W

  • Response Time-Max:

    0.000008 s

  • Surface Mount:

    NO

TLP624-4 Frequently Asked Questions (FAQs)

  • The recommended operating temperature range for the TLP624-4 is -40°C to 100°C. However, it's essential to note that the device's performance may degrade at extreme temperatures, and the maximum junction temperature should not exceed 125°C.
  • To ensure reliability in high-voltage applications, it's crucial to follow proper PCB layout and design guidelines, such as keeping the optocoupler away from high-voltage tracks, using adequate creepage and clearance distances, and providing sufficient isolation between the input and output circuits.
  • The maximum allowable current for the TLP624-4's output transistor is 50 mA. Exceeding this current may lead to device damage or degradation. It's essential to ensure that the output current is within the specified limit to maintain the device's reliability.
  • The TLP624-4 is suitable for low-to-medium frequency applications up to 1 MHz. While it can be used for higher frequencies, the device's performance may degrade, and the propagation delay may increase. For high-frequency applications above 1 MHz, it's recommended to consider alternative optocouplers with faster switching times.
  • The TLP624-4 requires a minimum input current of 5 mA to ensure proper operation. It's essential to ensure that the input current is within the specified range (5 mA to 20 mA) to maintain the device's reliability and performance. Additionally, the input current should be limited to prevent excessive power dissipation.
