TLP626-2(F) - Toshiba

Description: Transistor Output Optocouplers TR 2 CH AC/LOW INPUT

Download TLP626-2(F) Model

Schematic
symbols

PCB
footprints

3D
models

Alert me if there are changes to this TLP626-2(F) model

Email notifications will be applied after download.

Send part feedback

Symbol

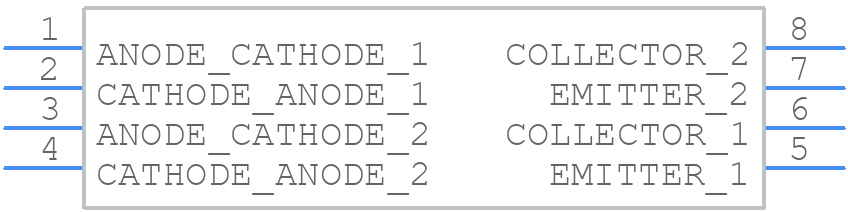

TLP626-2(F) - Toshiba - PCB symbol

PCB Footprints

TLP626-2(F) - Toshiba PCB footprint - Dual-In-Line Packages - Dual-In-Line Packages - 11-10C4 (8PDIP)

3D Models

TLP626-2(F) - Toshiba - 3D model - Dual-In-Line Packages - 11-10C4 (8PDIP)

Datasheet Download Datasheet
Stock & Prices Price & Stock for TLP626-2(F)
Part Number TLP626-2(F)
Manufacturer Toshiba
Pin Count 8
Part Category Integrated Circuit
Package Category Dual-In-Line Packages
Footprint Name Dual-In-Line Packages - 11-10C4 (8PDIP)
Released Date Jun 8, 2018
Last Modified Date Mar 7, 2023 4:10 PM UTC
Pinout / Pin List Click Here (Member Only)

TLP626-2(F) Details

Manufacturer Part Number:
TLP626-2(F)
Rohs Code:
Yes
Part Life Cycle Code:
Obsolete
HTS Code:
8541.40.80.00
Manufacturer:
Toshiba America Electronic Components
YTEOL:
0
Additional Feature:
UL RECOGNIZED
Coll-Emtr Bkdn Voltage-Min:
55 V
Configuration:
SEPARATE, 2 CHANNELS
Current Transfer Ratio-Min:
50%
Dark Current-Max:
10 nA
Forward Current-Max:
0.02 A
Forward Voltage-Max:
1.3 V
Isolation Voltage-Max:
5000 V
Mounting Feature:
THROUGH HOLE MOUNT
Number of Elements:
2
On-State Current-Max:
0.05 A
Operating Temperature-Max:
75 °C
Operating Temperature-Min:
-25 °C
Optoelectronic Device Type:
AC INPUT-TRANSISTOR OUTPUT OPTOCOUPLER
Power Dissipation-Max:
0.15 W
Response Time-Max:
0.000008 s
Surface Mount:
NO

TLP626-2(F) Frequently Asked Questions (FAQs)

The recommended operating temperature range for the TLP626-2(F) is -40°C to 125°C.
Yes, the TLP626-2(F) is designed for high-reliability applications and is qualified to AEC-Q101 standards.
The maximum allowable power dissipation for the TLP626-2(F) is 1.5 W at an ambient temperature of 25°C.
Yes, the TLP626-2(F) can be used in switching applications, but it is recommended to limit the switching frequency to 100 kHz or less to minimize power losses.
Yes, the TLP626-2(F) is compatible with lead-free soldering and is RoHS compliant.
