TLP626-4(F) - Toshiba

Description: Transistor Output Optocouplers 55Vceo 5000Vrms 4 channels

Download TLP626-4(F) Model

Schematic
symbols

PCB
footprints

3D
models

Alert me if there are changes to this TLP626-4(F) model

Email notifications will be applied after download.

Send part feedback

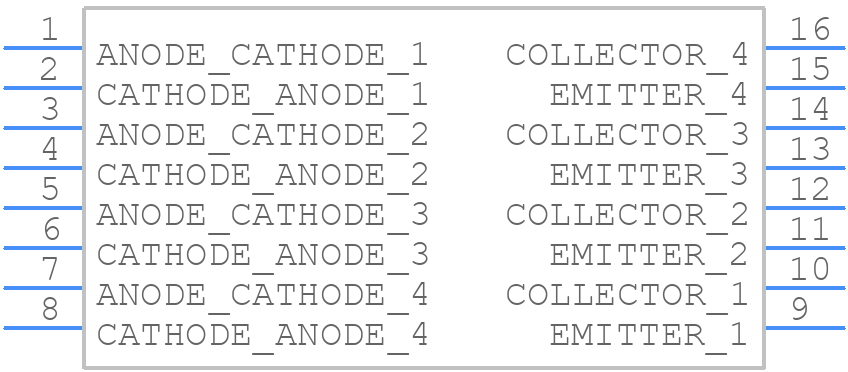

Symbol

TLP626-4(F) - Toshiba - PCB symbol

PCB Footprints

TLP626-4(F) - Toshiba PCB footprint - Dual-In-Line Packages - Dual-In-Line Packages - 11-20A3

3D Models

TLP626-4(F) - Toshiba - 3D model - Dual-In-Line Packages - 11-20A3

Datasheet Download Datasheet
Stock & Prices Price & Stock for TLP626-4(F)
Part Number TLP626-4(F)
Manufacturer Toshiba
Pin Count 16
Part Category Integrated Circuit
Package Category Dual-In-Line Packages
Footprint Name Dual-In-Line Packages - 11-20A3
Released Date Jun 8, 2018
Last Modified Date Mar 7, 2023 4:10 PM UTC
Pinout / Pin List Click Here (Member Only)

TLP626-4(F) Details

Manufacturer Part Number:
TLP626-4(F)
Rohs Code:
Yes
Part Life Cycle Code:
Obsolete
HTS Code:
8541.40.80.00
Manufacturer:
Toshiba America Electronic Components
YTEOL:
0
Additional Feature:
UL RECOGNIZED
Coll-Emtr Bkdn Voltage-Min:
55 V
Configuration:
SEPARATE, 4 CHANNELS
Current Transfer Ratio-Min:
50%
Dark Current-Max:
10 nA
Forward Current-Max:
0.02 A
Forward Voltage-Max:
1.3 V
Isolation Voltage-Max:
5000 V
Mounting Feature:
THROUGH HOLE MOUNT
Number of Elements:
4
On-State Current-Max:
0.05 A
Operating Temperature-Max:
75 °C
Operating Temperature-Min:
-25 °C
Optoelectronic Device Type:
AC INPUT-TRANSISTOR OUTPUT OPTOCOUPLER
Power Dissipation-Max:
0.15 W
Response Time-Max:
0.000008 s
Surface Mount:
NO

TLP626-4(F) Frequently Asked Questions (FAQs)

The recommended operating voltage range for the TLP626-4(F) is 3.3V to 5V.
To properly power down the TLP626-4(F), ensure that the VIN pin is connected to a stable power source, and the EN pin is pulled low to disable the device.
The maximum current rating for the TLP626-4(F) is 1.5A per channel.
To protect the TLP626-4(F) from ESD and overvoltage, use external ESD protection diodes and overvoltage protection circuits, and ensure that the device is operated within the recommended voltage range.
The typical propagation delay for the TLP626-4(F) is 10ns.

Trust Checks

Expert Contribution

System Verified

Community Approved

TLP626-4(F) Overview

Use the download button to access the TLP626-4(F) schematic symbol, PCB footprint, and 3D model.

To find more CAD model downloads similar to this part, try a partial part number search, like TLP62, or try a keyword search, such as Optocoupler
